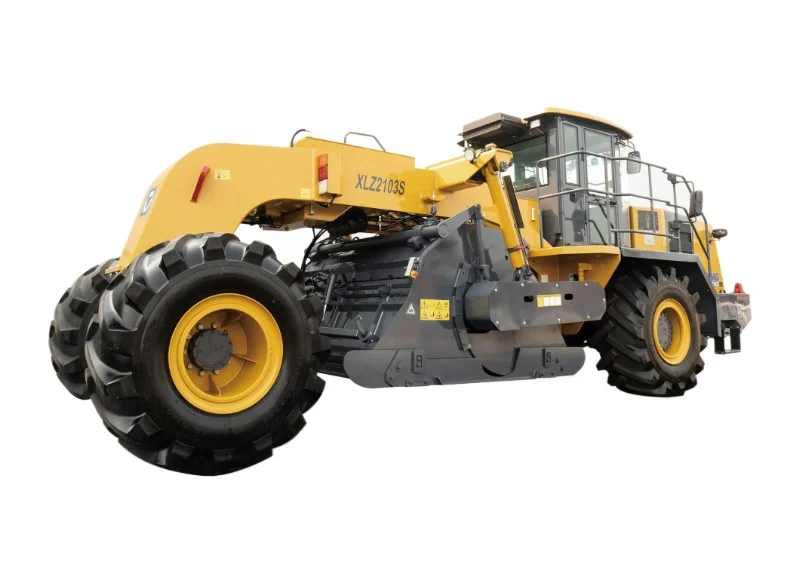

XCMG XLZ2103S Hydraulic Cold Recycler

2100 mm milling width — the smallest in this XLZ cold recycler set. 200 mm narrower than the XLZ2303K/XLZ2303S/XLZ2305K/XLZ2305S models (all 2300 mm). Suited to rural road upgrade work and municipal projects where lane width is tight or the project doesn't justify the wider 2300 mm milling drum. 0-400 mm variable milling depth controlled hydraulically.

Powered by a Weichai 6-cylinder diesel rated 353 kW at 2100 rpm, water-cooled with air-air intercooling, 74 kg/h fuel consumption at full load. Weichai is one of China's top three commercial diesel engine manufacturers with established parts and service networks. China Stage III emission — same emission standard as the sibling XLZ2303S, XLZ2305S, XLZ2305S(XLZ650S), XLZ2303K, XLZ2305K models.

Hydraulic drive variant — milling drum: 1380 mm diameter, 144 cutting tools at 18 mm tool spacing. Same 1380 mm milling wheel diameter as the larger hydraulic XLZ2303S and XLZ2305S siblings, scaled-down tool count for the narrower 2100 mm width. Working speed 0-3.2 km/h, travel speed 0-23 km/h, 20 percent working-gear gradeability.

Designed for in-place mixing of stabilized soil in base course and subgrade course on highways, urban roads, squares, wharves, and parking lots. Mixes filler, cement, and lime with natural soil for soil improvement. Mills damaged asphalt pavement under 150 mm thick — milling thickness rating below the heavier XLZ2303S (depth 0-400 mm but mills thicker) and XLZ2305S (200 mm). Fits rural road upgrade contractor work and municipal pavement upgrade projects.

Cutting tools, milling drum components, hydraulic system parts, and wear parts share core part numbers with the XCMG XLZ cold recycler set (XLZ2303S, XLZ2305S, XLZ2305S(XLZ650S) hydraulic variants and XLZ2303K, XLZ2305K mechanical variants) — lower inventory carrying cost for road maintenance and rental fleets running mixed XLZ rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
