17.4-ton motor grader, 17,390 kg operating weight typically equipped with push block and rear ripper/scarifier. Cat C7.1 six-cylinder engine, 7.01 L displacement, 131 kW net power at 2,200 rpm, 889 N·m maximum torque (ISO 9249), 40% torque rise, U.S. EPA Tier 3 / EU Stage IIIA. 3.7 m (12 ft) moldboard, 509 mm blade height, 735 mm maximum depth of cut, 480 mm maximum lift above ground, 1,928 mm maximum shoulder reach right, blade tip range 40° forward / 5° backward. 297 L fuel tank, 43 °C standard ambient capability, 10,322 mm machine length.

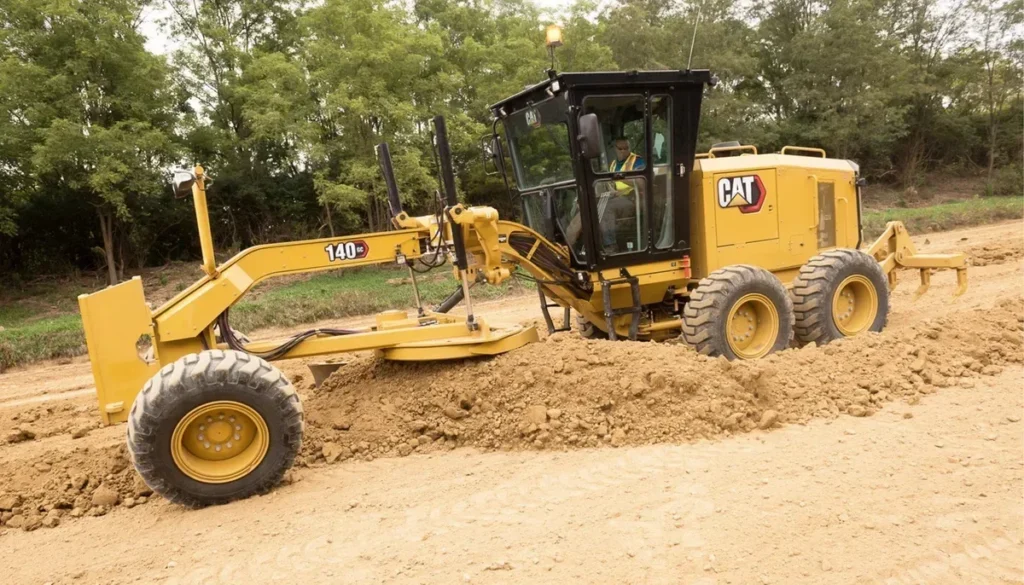

The CAT 140 GC is a new 17-tonne motor grader for road contractors and municipal works departments that build and maintain gravel roads, cut drainage ditches and trim sub-grade ahead of paving. It carries a 3.7 m (12 ft) moldboard and, as typically equipped, a front push block and rear ripper/scarifier, so one machine can rip a potholed road surface and regrade it in the same shift. All-wheel drive is available as an option for sand and loose gravel.
The Cat C7.1 engine is certified to U.S. EPA Tier 3 / EU Stage IIIA and runs without DPF or SCR aftertreatment, so there is no DEF to source and less exposure to local diesel quality — a practical fit for road programmes in Africa, the Middle East, Latin America and Central Asia. Standard Eco mode, which Caterpillar rates at up to 5% better fuel economy than running without it, lowers fuel cost on long rural maintenance contracts.
Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.
