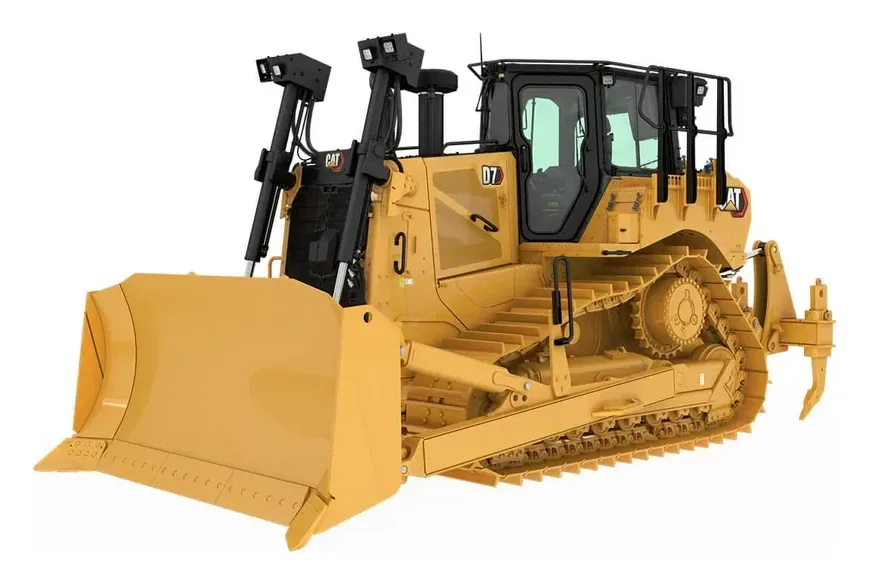

29.8 Ton CAT D7 Bulldozer — Cat C9.3B / Tier 4 Final, EU Stage V
30-tonne medium crawler dozer. Cat C9.3B engine, 197 kW (268 hp metric) net power per ISO 9249/SAE J1349, meets U.S. EPA Tier 4 Final / EU Stage V / Japan 2014 / Korea Stage V / China Nonroad Stage IV. Fully automatic 4-speed transmission. 29,776 kg operating weight with 7 m³ semi-universal blade on 610 mm shoes at 72 kPa ground pressure. LGP arrangement: 6 m³ straight blade on 915 mm shoes at 43 kPa. Waste Handler: 17 m³ universal landfill blade. 465 L fuel tank, 44 L DEF tank.
The CAT D7 is a new 30-tonne crawler dozer for earthmoving contractors, road builders and land-clearing crews who need more push than a D6 without the transport weight of a D8. The standard arrangement carries a semi-universal blade on 610 mm shoes; an LGP version on 915 mm shoes lowers ground pressure to 43 kPa for soft or wet ground, and a waste handler arrangement is built for landfill spreading and cover.
Against the earlier D7E, Caterpillar reports 12% more horsepower and up to 8% more material moved per hour. The standard dozer ships 3.7 m wide with the blade installed, which saves a blade removal before road transport from port to site. The Cat C9.3B engine meets U.S. EPA Tier 4 Final, EU Stage V and China Nonroad Stage IV; it requires ultra-low-sulfur diesel (15 ppm sulfur or less) and diesel exhaust fluid.
Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.
Six points that decide whether the D7 fits your fleet: output against the D7E, emission level and fuel supply, blade arrangement, undercarriage and transport width, grade control, and service access.
The Cat C9.3B delivers 197 kW (268 hp metric) net through a 4-speed powershift with lock-up clutch that shifts without operator input. Against the earlier D7E, Caterpillar reports 6% more weight, 12% more horsepower and up to 8% more material moved per hour.
The engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, Korea Stage V and China Nonroad Stage IV, with no EGR system and a single engine ECM. It must run on ultra-low-sulfur diesel (15 ppm sulfur or less), or ULSD blended with up to 20% FAME biodiesel or up to 100% HVO/GTL renewable diesel, and it needs DEF from a 44 L tank.
Standard dozer with a 7 m³ SU blade at 72 kPa ground pressure; LGP with a 6 m³ straight blade on 915 mm shoes at 43 kPa for soft or wet ground; Waste Handler with a 17 m³ landfill blade, center-hole shoes, extra guarding and polycarbonate cab doors. Caterpillar states the SU and S blades are 10% larger than on the D7E, and optional FirstCut edges add up to 35% blade payload over standard edges.
The elevated sprocket keeps final drives away from ground shock loads and adds penetration force. HDXL undercarriage with DuraLink: Caterpillar reports up to 20% more seal life in high-impact conditions. The standard dozer ships 3.7 m wide with the blade installed, so it can travel on a lowbed from port to site without removing the blade.
Slope Assist holds blade position without GNSS; Steer Assist keeps straight travel under light or heavy loads, and Caterpillar measured up to 75% fewer steering inputs. Cat Grade with 3D uses mastless cab-roof antennas and works with Trimble, Topcon and Leica base stations. The cab is also ready for Cat Command remote control for work in hazardous areas.
A reversible hydraulic demand fan clears the cooling cores while working. The cab can be removed in about 30 minutes, and a railed platform serves fuel and DEF filling. Product Link sends machine hours, location and maintenance alerts to VisionLink; Remote Flash updates software on site, which Caterpillar says can cut update time by as much as 50%.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | Cat C9.3B |
| Net power - rated (ISO 9249 / SAE J1349) | kW | 197 |
| Net power - rated (ISO 9249, DIN) | hp (metric) | 268 |
| Emission standard | - | U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, Korea Stage V, China Nonroad Stage IV |
| Operating weight | kg | 29,776 |
| Transmission | - | Fully automatic 4-speed |
| Fuel tank | L | 465 |
| DEF tank | L | 44 |
| Standard (SU blade) — operating weight | kg | 29,776 |
| Standard (SU blade) — ground pressure | kPa | 72 |
| Standard (SU blade) — standard shoe width | mm | 610 |
| Standard (SU blade) — blade capacity | m³ | 7 |
| LGP (Straight blade) — operating weight | kg | 28,677 |
| LGP (Straight blade) — ground pressure | kPa | 43 |
| LGP (Straight blade) — standard shoe width | mm | 915 |
| LGP (Straight blade) — blade capacity | m³ | 6 |
| Waste Handler (Universal landfill blade) — operating weight | kg | 28,140 |
| Waste Handler (Universal landfill blade) — ground pressure | kPa | 68 |
| Waste Handler (Universal landfill blade) — standard shoe width | mm | 610 |
| Waste Handler (Universal landfill blade) — blade capacity | m³ | 17 |
| Recyclability | % | 98 |
