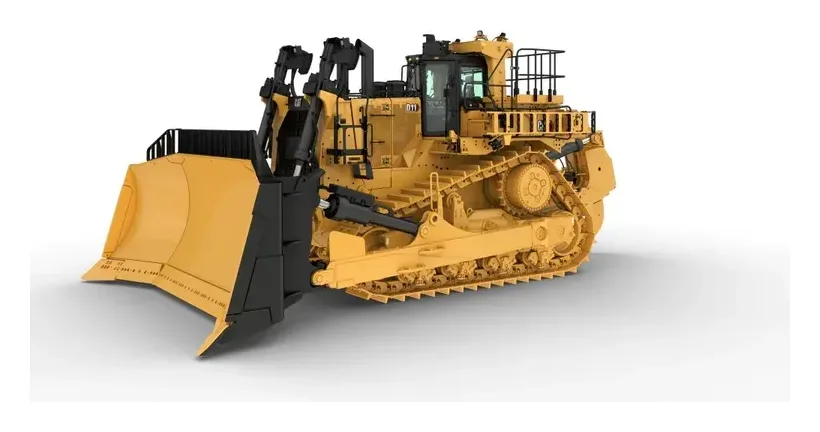

106.6 Ton CAT D11 Bulldozer — Cat C32B / Tier 4 Final or Tier 2 Equivalent
106.6-tonne mining dozer. Cat C32B engine, 32.1 L, 634 kW net forward and 714 kW net in reverse (SAE J1349/ISO 9249), built as U.S. EPA Tier 4 Final / EU Stage V or U.S. EPA Tier 2 equivalent. 106,614 kg operating weight (113,700 kg as Carrydozer). Blades: SU 27.2 m³, U 34.4 m³, Reclamation U 42 m³, Carrydozer 43.6 m³. Single-shank ripper to 1,612 mm (deep-ripping 2,172 mm), 661 kN pry-out force. 659.2 kN drawbar pull in first gear, 710 mm extreme service shoes, 6.3 m² ground contact area, 1,895 L fuel tank.
The CAT D11 is a new 106.6-tonne mining dozer for open-pit coal and metal mines, large quarries and land reclamation projects: slot dozing, ripping hard rock, pushing overburden and shaping waste dumps. Blade options run from semi-universal and universal blades up to the Carrydozer, plus coal and reclamation blades for light material.
In reverse the Cat C32B delivers 714 kW against 634 kW forward, which shortens the empty return leg of every dozing cycle. The engine is built in two emission configurations: U.S. EPA Tier 2 equivalent, and U.S. EPA Tier 4 Final / EU Stage V, which requires ultra-low-sulfur diesel (15 ppm sulfur or less) and diesel exhaust fluid. Confirm the configuration against your site fuel supply when requesting a quote. The machine leaves the factory ready for Cat MineStar Command remote operation and MineStar Terrain grade guidance.
Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.
Six points that decide whether the D11 fits your mine: drivetrain and reverse power, emission configuration and fuel supply, blade choice, ripping capacity, automation and MineStar readiness, and service design.
The 32.1 L Cat C32B gives 634 kW net forward and 714 kW in reverse; the extra reverse power shortens the empty return leg of each dozing cycle. A torque divider with stator clutch frees the stator when torque is not needed, and drawbar pull reaches 659.2 kN in first gear.
Caterpillar builds the D11 with a U.S. EPA Tier 4 Final / EU Stage V C32B or a U.S. EPA Tier 2 equivalent C32B; both are rated 634 kW net forward. The Tier 4 Final version needs ultra-low-sulfur diesel (15 ppm sulfur or less) and diesel exhaust fluid. Confirm which configuration suits your site fuel supply when requesting a quote.
SU blade 27.2 m³ (5,584 mm), U blade 34.4 m³ (6,340 mm), Reclamation U 42 m³ and Carrydozer 43.6 m³ (6,704 mm); the Carrydozer runs on 915 mm shoes with 8.1 m² ground contact at 113,700 kg. A 29.3° angle between blade bottom and ground helps the blade penetrate and load. Coal blades and reclamation blades handle light material.
Single-shank ripper to 1,612 mm, deep-ripping shank to 2,172 mm, both with 294 kN penetration force and 661 kN pry-out; multi-shank ripper with 3,330 mm beam and 344 kN penetration force. Optional Automatic Ripper Control adjusts engine speed and ripper depth to limit track slip and wear. Leach pad and five-shank coal rippers are also offered.
Automated Blade Assist with dual tilt is standard and moves the blade to preset pitch positions. Optional AutoCarry controls the blade during the carry segment; Caterpillar reports up to 15% higher productivity. Grade Control 3D needs no blade masts or cables. The machine leaves the factory ready for Cat MineStar Command remote or semi-autonomous operation and MineStar Terrain guidance.
Variable piston pumps (670 L/min combined implement output) in a load-sensing system run cooler for longer seal life. AutoLube has ground-level fill and automatic shut-off, the single-plane cooling system opens with swing-out doors, and the pin-joint design removes the need for line boring when bearing inserts are replaced. Fluid levels are monitored on all compartments.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | Cat C32B |
| Displacement | L | 32.1 |
| Tier 4 Final engine — emission standard | - | U.S. EPA Tier 4 Final / EU Stage V |
| Tier 4 Final engine — net power forward (SAE J1349 / ISO 9249) | kW | 634 |
| Tier 4 Final engine — net power reverse (SAE J1349 / ISO 9249) | kW | 714 |
| Tier 2 equivalent engine — emission standard | - | U.S. EPA Tier 2 equivalent |
| Tier 2 equivalent engine — net power forward (SAE J1349 / ISO 9249) | kW | 634 |
| Tier 2 equivalent engine — net power reverse (SAE J1349 / ISO 9249) | kW | 714 |
| Operating weight | kg | 106,614 |
| Operating weight - Carrydozer | kg | 113,700 |
| Semi-Universal (SU) blade — capacity | m³ | 27.2 |
| Semi-Universal (SU) blade — width over end bits | mm | 5,584 |
| Universal (U) blade — capacity | m³ | 34.4 |
| Universal (U) blade — width | mm | 6,340 |
| Reclamation Universal blade — capacity (SAE J1265) | m³ | 42 |
| Reclamation Universal blade — width over end bits | mm | 6,395 |
| Carrydozer blade — capacity (SAE J1265) | m³ | 43.6 |
| Carrydozer blade — width over end bits | mm | 6,704 |
| Travel speed - forward 1st / 2nd / 3rd | km/h | 4 / 7 / 12.2 |
| Travel speed - reverse 1st / 2nd / 3rd | km/h | 4.8 / 8.5 / 14.7 |
| Drawbar pull - 1st forward | kN | 659.2 |
| Drawbar pull - 2nd forward | kN | 366.1 |
| Drawbar pull - 3rd forward | kN | 205.8 |
| Hydraulic pump type | - | Variable displacement piston pump |
| Combined pump output - implement | L/min | 670 |
| Shoe type | - | Extreme Service |
| Shoe width | mm | 710 |
| Shoe width - Carrydozer | mm | 915 |
| Shoes per side | - | 41 |
| Grouser height | mm | 102 |
| Pitch | mm | 318 |
| Track gauge | mm | 2,896 |
| Length of track on ground | mm | 4,444 |
| Ground contact area | m² | 6.3 |
| Ground contact area - Carrydozer | m² | 8.1 |
| Track rollers per side | - | 8 |
| Carrier rollers | - | 1 per side (optional) |
| Single-shank ripper — max penetration force (shank vertical) | kN | 294 |
| Single-shank ripper — max penetration depth (standard tip) | mm | 1,612 |
| Single-shank ripper — pry-out force | kN | 661 |
| Single-shank deep-ripping ripper — max penetration force (shank vertical) | kN | 294 |
| Single-shank deep-ripping ripper — max penetration depth (standard tip) | mm | 2,172 |
| Single-shank deep-ripping ripper — pry-out force | kN | 661 |
| Multi-shank ripper (adjustable parallelogram) — overall beam width | mm | 3,330 |
| Multi-shank ripper (adjustable parallelogram) — max penetration force (shank vertical) | kN | 344 |
| Multi-shank ripper (adjustable parallelogram) — max penetration depth (standard tip) | mm | 1,100 |
| Multi-shank ripper (adjustable parallelogram) — pry-out force, one tooth | kN | 648 |
| D11 — ground clearance | mm | 798 |
| D11 — width at outside of track (710 mm shoe) | mm | 3,606 |
| D11 — height (ROPS/canopy) | mm | 4,723 |
| D11 — length with SU blade, no rear attachment | mm | 8,579 |
| D11 — overall length, SU blade and single-shank ripper | mm | 10,525 |
| D11 Carrydozer — width at outside of track (710 mm shoe) | mm | 3,806 |
| D11 Carrydozer — length with blade, no rear attachment | mm | 8,765 |
| D11 Carrydozer — overall length, blade and single-shank ripper | mm | 10,712 |
| Fuel tank - total volume | L | 1,895 |
| Fuel tank - usable volume | L | 1,800 |
| Cooling system | L | 177 |
| Cooling system refill - Tier 2 equivalent engine | L | 158 |
| Engine crankcase | L | 133 |
| Power train | L | 454 |
| Power train - refill volume | L | 391 |
| Final drive (each) | L | 47 |
| Roller frames (each) | L | 94 |
| Hydraulic tank | L | 160 |
| Hydraulic system - tank and chassis | L | 245 |
| Hydraulic system - chassis, blade and ripper (standard) | L | 445 |
| Hydraulic system - chassis, blade and ripper (Carrydozer) | L | 540 |
| ROPS | - | ISO 3471:2008 |
| FOPS | - | ISO 3449:2005 Level II |
| Exterior sound pressure level, sound suppressed (ISO 6396:2008) | dB(A) | 116 |
| Operator sound pressure level, sound suppressed (ISO 6396:2008) | dB(A) | 78 |
