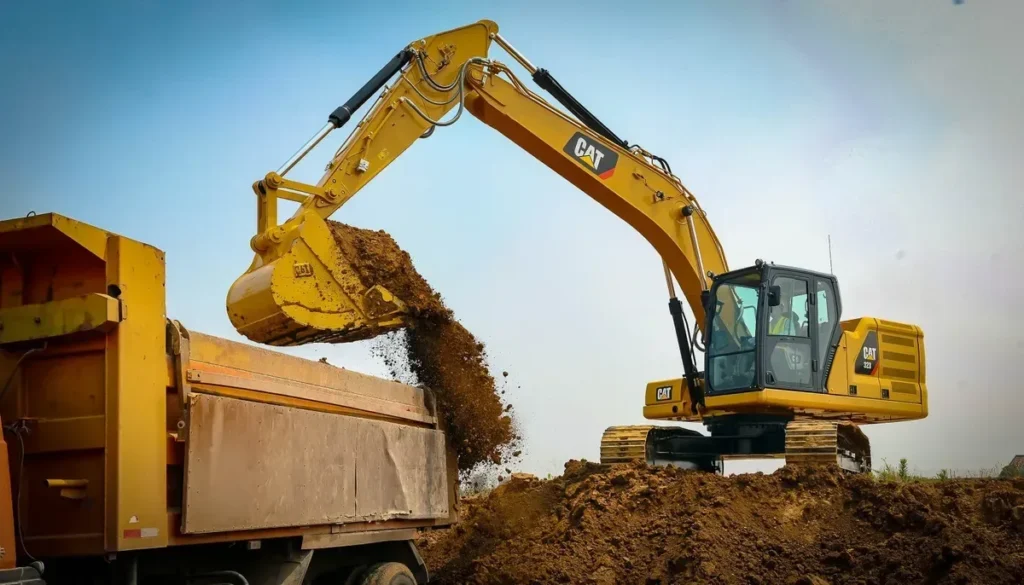

22.7 Ton CAT 323 GC Excavator — Cat C7.1 / Tier 3 Equivalent
22.7-ton GC-series hydraulic excavator on the long undercarriage with a 4,700 kg counterweight. Cat C7.1 engine, 7.01 L displacement, 117 kW net power (ISO 9249), emissions equivalent to U.S. EPA Tier 3 / EU Stage IIIA. Reach 5.7 m boom, Reach 2.9 m stick, 1.3 m3 general duty bucket, 140 kN bucket digging force, 107 kN stick digging force. Maximum digging depth 6,730 mm, maximum reach at ground level 9,870 mm, maximum loading height 6,490 mm. 429 L/min main pump flow, 345 L fuel tank, 4,450 mm track length, 2,380 mm track gauge.
The CAT 323 GC is a new 23-tonne crawler excavator from Caterpillar's GC series, built for contractors whose main work is bulk digging and truck loading on civil, road and municipal jobs rather than finish grading. The standard package is kept simple — two power modes, VisionLink telematics, no factory grade control — and the machine carries a 1.3 m3 general duty bucket on the long undercarriage with a 4,700 kg counterweight, a steadier base than a 20-tonne machine when loading tippers from a bench or setting drainage pipe.
Emissions are equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Fuel passes through two filtration stages with a water separator, which matters on sites where diesel quality changes from one delivery to the next. Caterpillar rates the 323 GC at up to 25% lower fuel use than the 320D2.
Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.
Five points to check before adding the 323 GC to your fleet: engine output against machine weight, fuel system tolerance, bucket size for truck loading, undercarriage stability, and service intervals.
Cat C7.1 single-turbo diesel, 7.01 L: 117 kW (159 hp metric) net per ISO 9249 and 118 kW per ISO 14396, biodiesel up to B20. Two modes, Power and Smart; the positive flow control pump adjusts output to valve demand to cut wasted flow. Caterpillar reports up to 25% less fuel use than the 320D2.
Emissions are equivalent to U.S. EPA Tier 3 and EU Stage IIIA. A two-stage fuel filtration system with water separator and indicator, plus an electric priming pump, protects the injection system where diesel is stored in drums or site tanks. Rated to 3,000 m altitude without de-rating, 52 °C ambient and -18 °C cold start.
Reach 5.7 m boom and Reach 2.9 m stick with a 1.3 m3 general duty bucket: 6,730 mm digging depth, 9,870 mm reach at ground level, 6,490 mm loading height, 140 kN bucket and 107 kN stick digging force (ISO). Valve priority sends 429 L/min at 35,000 kPa where the operator commands it for quick light- to medium-load cycles.
The 323 GC ships on the long undercarriage — 4,450 mm track length, 2,380 mm gauge, 2,980 mm transport width — with a 4,700 kg counterweight and grease-lubricated track. Grease sealed between pins and bushings lowers travel noise and keeps grit out; the sloped track frame sheds mud and a track guiding guard holds alignment on slopes.
Caterpillar calculates up to 25% lower maintenance cost than the 320D2 over 12,000 machine hours. The air intake filter with precleaner lasts up to 1,000 hours in some applications, the hydraulic oil filter 3,000 hours, and engine oil runs 1,000 hours with Cat oil, filters and S·O·S sampling. Engine oil and fuel filters are grouped, and filter life is tracked on the in-cab monitor.
| Parameter | Unit | Value |
|---|---|---|
| Net power - ISO 9249 | kW | 117 |
| Net power - ISO 9249 | hp (metric) | 159 |
| Engine model | - | Cat C7.1 |
| Engine power - ISO 14396 | kW | 118 |
| Engine power - ISO 14396 | hp (metric) | 160 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Displacement | L | 7.01 |
| Biodiesel capability | - | Up to B20 |
| Emission standard | - | Equivalent to U.S. EPA Tier 3 and EU Stage IIIA |
| Main system - max flow | L/min | 429 |
| Max pressure - equipment | kPa | 35,000 |
| Max pressure - travel | kPa | 34,300 |
| Max pressure - swing | kPa | 26,800 |
| Swing speed | r/min | 11.25 |
| Max swing torque | kN·m | 81.8 |
| Operating weight | kg | 22,700 |
| Fuel tank | L | 345 |
| Cooling system | L | 25 |
| Engine oil - with filter | L | 25 |
| Swing drive | L | 6 |
| Final drive - each | L | 5 |
| Hydraulic system incl. tank | L | 234 |
| Hydraulic tank | L | 115 |
| Boom | m | Reach 5.7 |
| Stick | m | Reach 2.9 |
| Bucket | m3 | GD 1.3 |
| Shipping height - top of cab | mm | 2,960 |
| Handrail height | mm | 2,954 |
| Shipping length | mm | 9,531 |
| Tail swing radius | mm | 2,833 |
| Counterweight clearance | mm | 1,048 |
| Ground clearance | mm | 468 |
| Track length | mm | 4,450 |
| Length to center of rollers | mm | 3,650 |
| Track gauge | mm | 2,380 |
| Transport width | mm | 2,980 |
| Max digging depth | mm | 6,730 |
| Max reach at ground level | mm | 9,870 |
| Max cutting height | mm | 9,450 |
| Max loading height | mm | 6,490 |
| Min loading height | mm | 2,170 |
| Max depth cut for 2,440 mm (8 ft) level bottom | mm | 6,560 |
| Max vertical wall digging depth | mm | 5,610 |
| Bucket digging force - ISO | kN | 140 |
| Stick digging force - ISO | kN | 107 |
