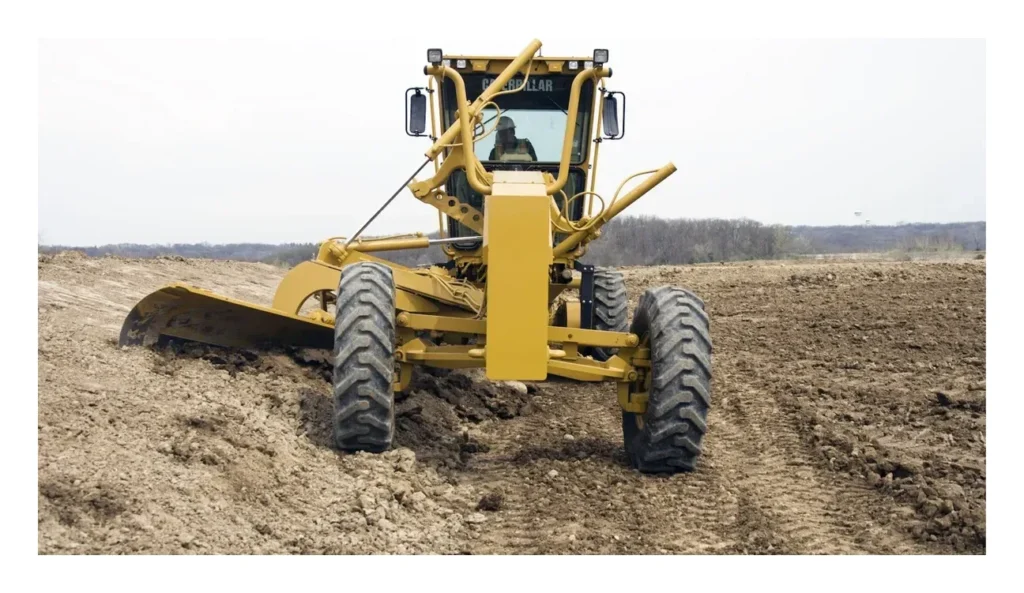

17.7-ton motor grader, 17,706 kg operating weight typically equipped (5,136 kg front / 12,570 kg rear axle), 15,185 kg base. Cat C7 six-cylinder engine, 7.2 L displacement, 139 kW net base power in 1st gear and 139–154 kW Variable Horsepower range at 2,000 rpm, 1,076 N·m maximum torque, 46% torque rise, emissions equivalent to U.S. EPA Tier 3 / EU Stage IIIA. 4.3 m (14 ft) moldboard, 686 mm high and 25 mm thick, 790 mm maximum depth of cut, 2,261 mm maximum shoulder reach outside tires, blade tip range 40° forward / 5° backward. 8-forward / 6-reverse powershift transmission, 305 L fuel tank, 50 °C high-ambient capability.
The CAT 160K is a new 17.7-tonne motor grader in the 14 ft blade class, bought by highway contractors, earthworks companies and mine operators for building and maintaining roads, spreading base material and keeping quarry and mine haul roads in shape. Its 4.3 m moldboard covers a standard lane in fewer passes than a 12 ft machine, and the rear ripper/scarifier option breaks up compacted surfaces before regrading.
The Cat C7 engine emits equivalent to U.S. EPA Tier 3 / EU Stage IIIA and needs no DEF, which keeps fuelling simple on remote sites across Africa, the Middle East, Latin America and Central Asia. Variable Horsepower adds up to 15 kW in the higher gears used for long grading passes, while the lower 139 kW setting in 1st gear limits wheel slip and fuel burn in heavy cuts.
Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.
