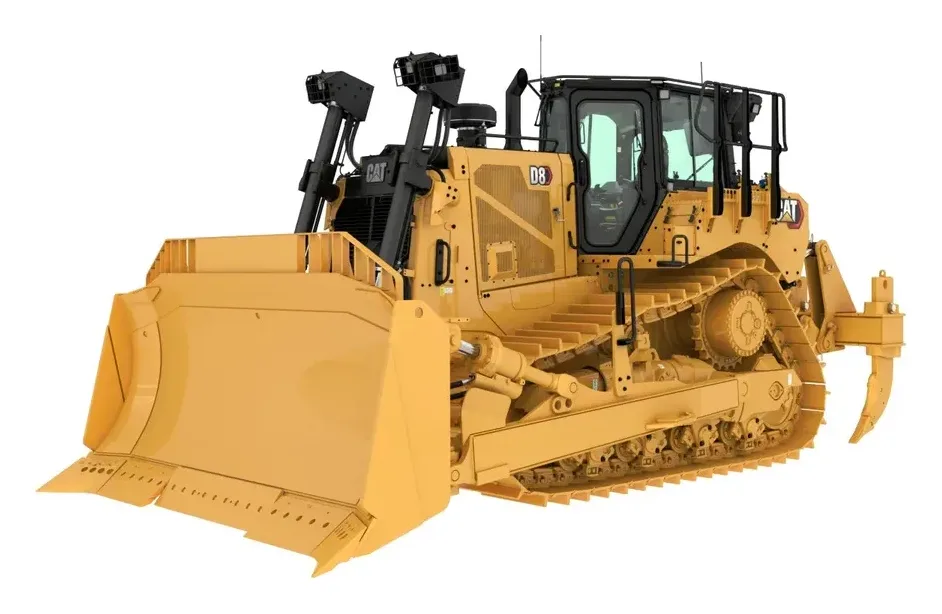

39.5 Ton CAT D8 Bulldozer — Cat C15 / Tier 4 Final, EU Stage V
39.5-tonne crawler dozer. Cat C15 engine, 271 kW (368 hp metric) net power per ISO 9249/SAE J1349, meets U.S. EPA Tier 4 Final / EU Stage V / Japan 2014 / Korea Stage V / China Nonroad Stage IV. Fully automatic 4-speed transmission with lock-up clutch torque divider. 39,500 kg operating weight with 10.3 m³ semi-universal blade on 610 mm shoes at 89.7 kPa ground pressure. LGP arrangement: 9.9 m³ blade on 965 mm shoes at 54.6 kPa. Waste Handler versions carry 21.2 m³ landfill blades. 627 L fuel tank, 33 L DEF tank.
The CAT D8 is a new 39.5-tonne crawler dozer for large earthworks, dam and highway cuts, quarry stripping and mine support work where a D7 runs out of push. The long undercarriage and elevated sprocket are standard, and Caterpillar offers four arrangements: a semi-universal blade on 610 mm shoes, an LGP version on 965 mm shoes for soft ground, and two waste handler versions with landfill blades for large disposal sites.
Cat Assist functions — Traction Control, AutoCarry, Stable Blade and AutoRip for the ripper — help less experienced operators keep production up; Caterpillar measured up to 45% fewer operator inputs with Slope Assist in side-slope testing. The Cat C15 engine meets U.S. EPA Tier 4 Final, EU Stage V and China Nonroad Stage IV, so plan for ultra-low-sulfur diesel (15 ppm sulfur or less) and a diesel exhaust fluid supply on site.
Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.
Six points that decide whether the D8 fits your fleet: drivetrain, emission level and fuel supply, blade arrangement, operator assist functions, cab and remote operation, and service time.
The Cat C15 delivers 271 kW (368 hp metric) net through a fully automatic 4-speed powershift with a lock-up clutch torque divider. A long undercarriage with more track behind the machine is standard, and the elevated sprocket adds penetration force for slot dozing and ripping.
The C15 meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and China Nonroad Stage IV, with no EGR system and a single engine ECM. It must run on ultra-low-sulfur diesel (15 ppm sulfur or less), or ULSD blended with up to 20% FAME biodiesel or up to 100% HVO/GTL renewable diesel, and it needs DEF from a 33 L tank.
Standard dozer with a 10.3 m³ SU blade at 89.7 kPa; LGP with a 9.9 m³ blade on 965 mm shoes at 54.6 kPa for soft ground; Waste Handler and LGP Waste Handler with 21.2 m³ landfill blades, center-hole shoes, striker bars, sealed guarding and impact-resistant polycarbonate cab doors.
Traction Control, AutoCarry, Blade Load Monitor, Stable Blade, Slope Assist and Steer Assist automate blade and steering work; AutoRip automates ripper raise, lower and shank in/out. Caterpillar measured up to 45% fewer operator inputs with Slope Assist in side-slope testing on a D5. Application Profile and Operator ID store settings per job or per operator.
Cab, 254 mm touchscreen and controls are shared with the D5 to D8, so operators move between dozers without retraining. Caterpillar reports 17% better visibility than the previous D8 (21B) from the integrated ROPS. An HD rearview camera is standard, and the cab is factory-ready for Cat Command console (line-of-sight) or station (long-distance) remote operation.
The cab can be removed in about 30 minutes, and the floor opens without tools. A reversing hydraulic demand fan clears debris while working, and heavy-duty batteries give more cold-cranking power. Read/Write Remote Troubleshoot lets a technician diagnose faults remotely, and Cat Grade with 3D hardware can be fitted at the factory to avoid shop time later.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | Cat C15 |
| Net power (ISO 9249 / SAE J1349) | kW | 271 |
| Net power (ISO 9249, DIN) | hp (metric) | 368 |
| Emission standard | - | U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, Korea Stage V, China Nonroad Stage IV |
| Operating weight | kg | 39,500 |
| Transmission | - | Fully automatic 4-speed with lock-up clutch (LUC) torque divider |
| Fuel tank | L | 627 |
| DEF tank | L | 33 |
| Standard (SU blade) — operating weight | kg | 39,500 |
| Standard (SU blade) — ground pressure | kPa | 89.7 |
| Standard (SU blade) — standard shoe width | mm | 610 |
| Standard (SU blade) — blade capacity | m³ | 10.3 |
| LGP (LGP SU blade) — operating weight | kg | 38,085 |
| LGP (LGP SU blade) — ground pressure | kPa | 54.6 |
| LGP (LGP SU blade) — standard shoe width | mm | 965 |
| LGP (LGP SU blade) — blade capacity | m³ | 9.9 |
| Waste Handler (SU landfill blade) — operating weight | kg | 39,900 |
| Waste Handler (SU landfill blade) — ground pressure | kPa | 83.7 |
| Waste Handler (SU landfill blade) — standard shoe width | mm | 660 |
| Waste Handler (SU landfill blade) — blade capacity | m³ | 21.2 |
| LGP Waste Handler (SU landfill blade) — operating weight | kg | 41,545 |
| LGP Waste Handler (SU landfill blade) — ground pressure | kPa | 59.6 |
| LGP Waste Handler (SU landfill blade) — standard shoe width | mm | 965 |
| LGP Waste Handler (SU landfill blade) — blade capacity | m³ | 21.2 |
| Recyclability | % | 98 |
