CAT D9 Bulldozer

50 Ton CAT D9 Bulldozer — Cat C18 / Tier 4 Final or Tier 2/3 Equivalent

Share:
Ask AI:
NewAvailableYear 2026

50-tonne large crawler dozer. Cat C18 engine, 18.1 L: 337 kW net (U.S. EPA Tier 2 or Tier 3 equivalent) or 328 kW net (U.S. EPA Tier 4 Final / EU Stage V), SAE J1349/ISO 9249. 49,988 kg operating weight with SU blade and single-shank ripper, 38,271 kg shipping weight. Semi-universal blade 13.6 m³, universal blade 16.6 m³. Single-shank ripper to 1,231 mm (deep-ripping shank 1,727 mm), 332 kN pry-out force. 3-speed planetary powershift, differential steering, 610 mm extreme service shoes, 4.23 m² ground contact area, 963 L fuel tank.

The CAT D9 is a new 50-tonne large crawler dozer for quarries, open-pit mines, heavy construction and landfill sites: pushing blasted rock, ripping, stripping overburden and building haul roads. It is offered with semi-universal or universal blades and single-shank, deep-ripping or multi-shank rippers, on a suspended undercarriage with differential steering.

Caterpillar builds the Cat C18 engine in two emission configurations: U.S. EPA Tier 2 or Tier 3 equivalent, with no DEF system, and U.S. EPA Tier 4 Final / EU Stage V, which needs ultra-low-sulfur diesel (15 ppm sulfur or less) and diesel exhaust fluid. Confirm which configuration matches your fuel supply and local emission requirements when you request a quote. The frame, powertrain and main components are designed to be rebuilt, giving the machine a second working life at a fraction of the cost of a replacement.

Machines are brand-new and ship from our yard with the complete export document pack. FOB China and CIF prices are quoted on request.

Model D9
Chat with Patrick

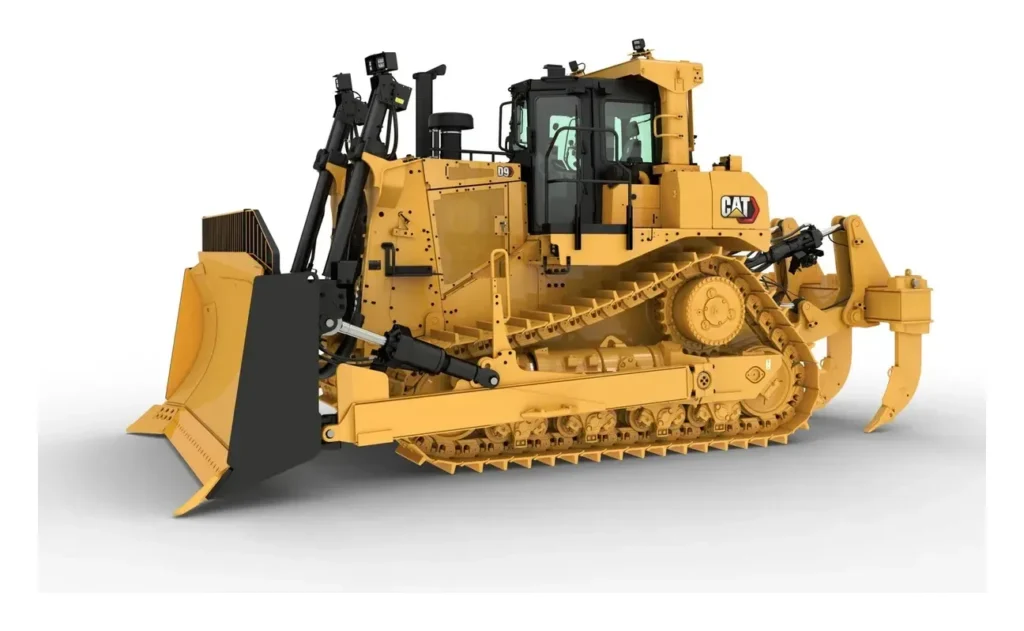

CAT D9 Bulldozer — new 50 t crawler dozer, Cat C18 337 kW
CAT D9
CIF Quote Available
Key Parameters

Core Specifications

Operating Weight
49,988 kg
Net Power
328–337 kW
Blade Capacity (SU / U)
13.6 / 16.6 m³
Max Ripping Depth
1,727 mm
Why This Machine

Product Features

Six points that decide whether the D9 fits your quarry or mine: drivetrain, emission configuration and fuel supply, undercarriage, blade and ripper choice, automation, and rebuild and service costs.

01
Powertrain

Cat C18 with stator clutch torque converter

The 18.1 L Cat C18 drives a 3-speed planetary powershift (11 km/h top forward, 13.6 km/h top reverse) through a torque converter whose stator clutch frees the stator under low load, cutting fuel use when torque multiplication is not needed. Differential steering keeps power on both tracks while turning, so the machine holds ground speed with a full blade.

02
Emissions

Two emission configurations — confirm before ordering

Caterpillar builds the D9 with a U.S. EPA Tier 2 or Tier 3 equivalent C18 (337 kW net, no DEF system) or a U.S. EPA Tier 4 Final / EU Stage V C18 (328 kW net). The Tier 4 Final version needs ultra-low-sulfur diesel (15 ppm sulfur or less) and DEF from a 36 L tank. Confirm which configuration suits your site fuel supply when requesting a quote.

03
Undercarriage

Suspended undercarriage with 8 rollers per side

Bogie suspension lets the track follow uneven ground for more traction and less slip; Caterpillar reports up to 50% lower shock loads into the undercarriage. 610 mm extreme service shoes, 43 per side, give 4.23 m² ground contact. HDXL undercarriage with DuraLink: Caterpillar cites 20–40% longer life and 8,000-hour seal life.

04
Attachments

13.6 m³ SU or 16.6 m³ U blade, three ripper options

Semi-universal blade 13.6 m³ (4,350 mm wide) or universal blade 16.6 m³ (4,680 mm). Single-shank ripper to 1,231 mm with 332 kN pry-out, deep-ripping shank to 1,727 mm, or a 3-pocket multi-shank ripper with 361 kN pry-out per tooth. The Dual Tilt option adjusts blade pitch so the blade can carry material rather than only push it.

05
Productivity

Automated Blade Assist, AutoCarry and remote operation

Optional Automated Blade Assist sets blade pitch for load, carry and spread; AutoCarry controls blade lift to hold load and limit track slip; Automatic Ripper Control adjusts ripper height to limit slip. Cat MineStar Command offers remote control for hazardous faces, and Product Link Elite reports location, operation and machine condition.

06
Serviceability

AutoLube, grouped service points, built to be rebuilt

Integrated AutoLube, fewer grease points, longer filter intervals and continuous fluid-level monitoring: Caterpillar reports up to 4% savings in maintenance and repair. Service points are grouped with ground-level access. Frame, powertrain and main components are designed for rebuild, giving a second working life at a fraction of the price of a new machine.

Technical Parameters

Full Specification Sheet

ParameterUnitValue
Engine model - Cat C18
Bore mm 145
Stroke mm 183
Displacement L 18.1
Tier 2/3 equivalent engine — emission standard - U.S. EPA Tier 2 or Tier 3 equivalent
Tier 2/3 equivalent engine — net power (SAE J1349 / ISO 9249) kW 337
Tier 2/3 equivalent engine — gross power (SAE J1995) kW 363
Tier 2/3 equivalent engine — engine power (ISO 14396) kW 357
Tier 4 Final engine — emission standard - U.S. EPA Tier 4 Final / EU Stage V
Tier 4 Final engine — net power (SAE J1349 / ISO 9249) kW 328
Tier 4 Final engine — gross power (SAE J1995) kW 356
Tier 4 Final engine — engine power (ISO 14396) kW 349
Operating weight kg 49,988
Shipping weight kg 38,271
Transmission type - Planetary powershift
Travel speed - forward 1st / 2nd / 3rd km/h 3.5 / 6.3 / 11
Travel speed - reverse 1st / 2nd / 3rd km/h 4.4 / 7.8 / 13.6
Steering type - Differential
Brake type - Spring applied wet disc
Brake diameter mm 393.7
Brake count - 8
Shoe type - Extreme Service
Shoe width mm 610
Shoes per side - 43
Grouser height mm 84
Pitch mm 240
Ground clearance mm 459
Track gauge mm 2,250
Length of track on ground mm 3,470
Ground contact area m² 4.23
Track rollers per side - 8
Carrier rollers - 1 per side (optional)
Semi-Universal blade — capacity (SAE J1265) m³ 13.6
Semi-Universal blade — width over end bits mm 4,350
Semi-Universal blade — height mm 1,934
Semi-Universal blade — max digging depth mm 606
Semi-Universal blade — ground clearance at full lift mm 1,422
Semi-Universal blade — max tilt mm 940
Semi-Universal blade — blade weight kg 4,802
Semi-Universal blade — total operating weight with single-shank ripper kg 49,988
Universal blade — capacity (SAE J1265) m³ 16.6
Universal blade — width over end bits mm 4,680
Universal blade — height mm 1,934
Universal blade — max digging depth mm 606
Universal blade — ground clearance at full lift mm 1,422
Universal blade — max tilt mm 1,014
Universal blade — blade weight kg 5,450
Universal blade — total operating weight with single-shank ripper kg 50,513
Single-shank ripper — max penetration force (shank vertical) kN 158
Single-shank ripper — max penetration depth (standard tip) mm 1,231
Single-shank ripper — pry-out force kN 332
Single-shank ripper — max clearance raised (under tip) mm 882
Single-shank ripper — number of pockets - 1
Single-shank ripper — weight kg 4,854
Single-shank ripper — total operating weight with SU blade kg 49,988
Single-shank deep-ripping ripper — max penetration force (shank vertical) kN 172
Single-shank deep-ripping ripper — max penetration depth (standard tip) mm 1,727
Single-shank deep-ripping ripper — pry-out force kN 331
Single-shank deep-ripping ripper — max clearance raised (under tip) mm 817
Single-shank deep-ripping ripper — number of pockets - 1
Single-shank deep-ripping ripper — weight kg 4,981
Single-shank deep-ripping ripper — total operating weight with SU blade kg 50,115
Multi-shank ripper (adjustable parallelogram) — max penetration force (shank vertical) kN 154
Multi-shank ripper (adjustable parallelogram) — max penetration depth (standard tip) mm 798
Multi-shank ripper (adjustable parallelogram) — pry-out force, one tooth kN 361
Multi-shank ripper (adjustable parallelogram) — max clearance raised (under tip) mm 879
Multi-shank ripper (adjustable parallelogram) — number of pockets - 3
Multi-shank ripper (adjustable parallelogram) — weight kg 5,550
Multi-shank ripper (adjustable parallelogram) — total operating weight with SU blade kg 50,684
Hydraulic pump type - Piston-type geared to flywheel
Pump output - steering L/min 363
Pump output - fan L/min 80
Tilt cylinder flow - rod end L/min 200
Tilt cylinder flow - head end L/min 200
Lift cylinder relief valve setting kPa 26,200
Tilt cylinder relief valve setting kPa 19,300
Ripper lift relief valve setting kPa 26,200
Ripper pitch relief valve setting kPa 26,200
Steering system pressure kPa 40,500
Fuel tank (splash fill) L 963
Fuel tank (fast fill) L 939
DEF tank (Tier 4 Final only) L 36
Cooling system L 81.3
Engine crankcase L 36
Powertrain L 150
Final drives (each) L 15
Roller frames (each) L 45
Pivot shaft oil L 30
Hydraulic system tank L 89
Width without trunnions (standard shoe) mm 2,870
Width over trunnions mm 3,310
Height - FOPS cab mm 3,820
Height - top of stack mm 3,876
Height - ROPS/canopy mm 4,000
Drawbar height (center of clevis) mm 763
Overall length - basic tractor mm 4,910
Length - basic tractor with drawbar mm 5,242
Length - basic tractor with winch mm 5,545
Length - with SU blade mm 6,601
Length - with U blade mm 6,967
Length - with single-shank ripper mm 6,529
Length - with multi-shank ripper mm 6,538
Overall length - SU blade and single-shank ripper mm 8,219
Winch model - PA 140VS
Winch weight kg 1,790
Winch oil capacity L 15
Winch drum width mm 320
Winch cable diameter - recommended / optional mm 28 / 32
Winch drum capacity - recommended / optional cable m 78 / 62
Winch cable ferrule - outside diameter mm 60
Winch cable ferrule - length mm 70
ROPS - ISO 3471:2008
FOPS - ISO 3449:2005 Level II
Spectator sound power level (ISO 6395:2008) dB(A) 116
Operator sound pressure level, enclosed cab (ISO 6396:2008) dB(A) 78
