Mechanical-drive cold recycler with 2300 mm milling width and 430 mm milling depth. 570.5 kW rated power from a 6-cylinder water-cooled diesel — 4.5 kW more than the 8-cylinder XLZ2303K (566 kW) on fewer cylinders. 200 cutting tools, 1480 mm milling wheel diameter (with cutters). China Stage III emission. Sized for mixing natural soil with filler, cement, lime for soil property improvement, and for milling damaged asphalt or asphalt concrete pavement up to 250 mm thick.

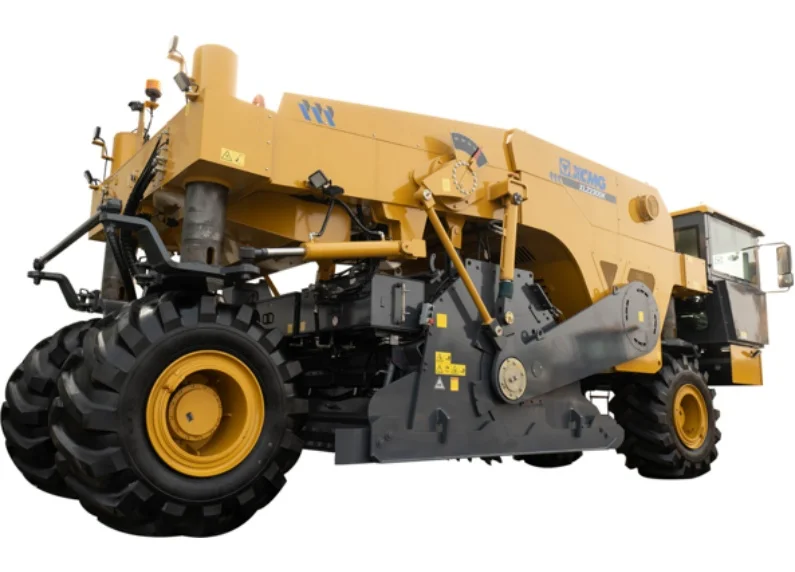

The XCMG XLZ2305K is a mechanical cold recycler with 2300 mm milling width and 430 mm milling depth — sized for upgrading old asphalt pavement and milling damaged asphalt or asphalt concrete pavement up to 250 mm thick.
The XLZ2305K sits in the mechanical-drive variant family alongside the lower-power XLZ2303K. 570.5 kW rated power from a 6-cylinder water-cooled diesel — 4.5 kW more than the 8-cylinder XLZ2303K (566 kW) on fewer cylinders. Milling drum (with cutters): 1480 mm wheel diameter — 100 mm larger than the hydraulic-drive 1380 mm wheels. 200 cutting tools. China Stage III emission. Designed for mixing natural soil with filler, cement, and lime to improve soil mechanical and physical properties, and for milling damaged asphalt pavement up to 250 mm thick. The 6-cylinder configuration at higher per-cylinder displacement gives a parts pool distinct from the XLZ2303K 8-cylinder layout while delivering matched power output. Suited for road maintenance contractors needing mechanical-drive transmission with the larger milling wheel diameter.
