Hydraulic-drive cold recycler with 2300 mm milling width and 0-400 mm variable milling depth. Weichai 6-cylinder diesel rated 390 kW at 2100 rpm, water-cooled with air-air intercooling, 78 kg/h fuel consumption at full load. 162 cutting tools at 18 mm spacing, 1380 mm milling wheel diameter. Working speed 0-3.2/4 km/h with single-drive option, travel speed 0-22.8/29 km/h with single-drive option, 20 percent working gradeability. Machine dimensions 9230×3260×3450 mm. China Stage III emission. Hydraulic-drive sibling to the mechanical XLZ2303K — pick hydraulic for finer speed control and single-drive option flexibility.

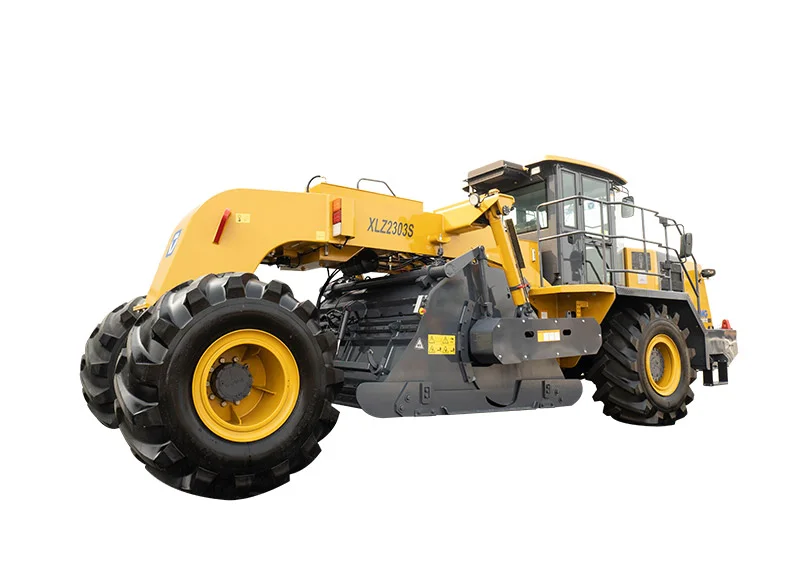

The XCMG XLZ2303S is a hydraulic cold recycler with 2300 mm milling width and 0-400 mm variable milling depth — sized for in-place soil stabilization and asphalt milling under 150 mm thick on highways, urban roads, wharves, and parking lots.
The XLZ2303S is the hydraulic-drive variant at the 2300 mm width class, paired against the mechanical-drive XLZ2303K sibling. Weichai 6-cylinder diesel rated 390 kW at 2100 rpm, water-cooled with air-air intercooling, 78 kg/h fuel consumption at full load. Milling drum: 1380 mm wheel diameter, 162 cutting tools at 18 mm spacing. Working speed 0-3.2/4 km/h with single-drive option, travel speed 0-22.8/29 km/h with single-drive option, 20 percent working-gear gradeability, 350 mm ground clearance. Fluid capacities: 650 L diesel, 300 L hydraulic oil, 200 L water. Machine dimensions 9230×3260×3450 mm, 24 V electrical. China Stage III emission. Suited for projects requiring hydraulic drive control on a 2300 mm milling width, with single-drive option for travel speed flexibility.
