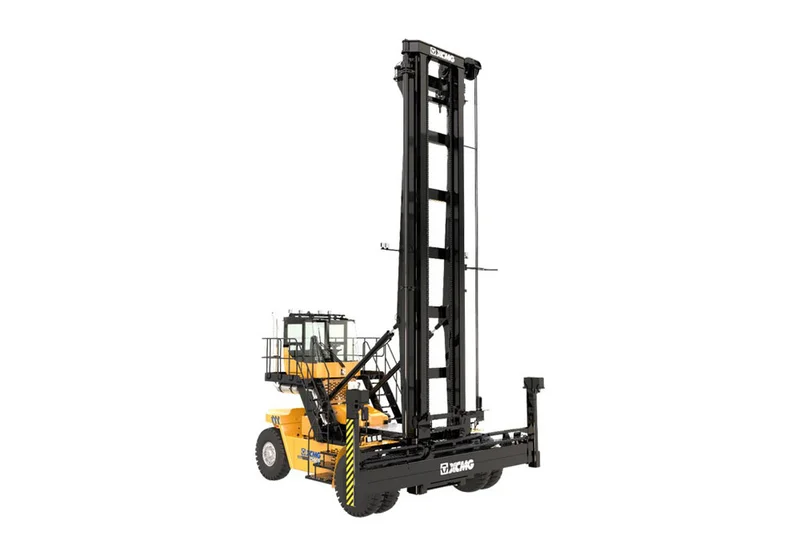

XCMG XCH1008K Empty Container Handler

10,000 kg lifting capacity — 11 percent above the 9-ton XCH907K, XCH907E, XCH908K, and XCH1007K siblings. Choose XCH1008K when project container weights run consistently above 8 tons and the 9-ton class leaves no headroom for varied loads. Useful in container yards handling 20 ft loaded-but-light containers, mixed empty + lightly-loaded containers, or where load variability across the inventory pushes peak picks above the 9-ton envelope.

Stacking envelope is 7+1 layer at 8'6" standard containers (8 layers total) or 6+1 layer at 9'6" high-cube containers (7 layers total). The "+1" notation reflects the top-most container reach being on the upper limit of the stacking envelope. Covers both standard and high-cube container yard layouts. 4,550 mm wheelbase. 6,900 × 6,080 × 4,740 mm overall dimensions per the source spec sheet.

Engine specified as Cummins only — no Volvo option on the XCH1008K (vs the dual Cummins/Volvo choice on the 9-ton XCH907K and XCH908K siblings). Operators wanting a Volvo-only 9-ton variant should look at the XCH1007K sibling. Lets Cummins-network fleets lock the 10-ton spec to a single engine brand for parts inventory and technician training consolidation.

Cummins engine emission specified at EU3/Tier 3, EU4/Tier 4F, or EU5 — covers regulatory zones from less-restrictive emerging markets through North American Tier 4 Final to current European zones. One XCH1008K base platform, three emission options selected at order. Useful for Cummins-centric dealers and rental fleets exporting across jurisdictions with different in-service emission requirements.

DANA transmission and Kessler axle — same drivetrain components specified on the XCH907K, XCH907E, XCH908K, and XCH1007K siblings. Common drivetrain spec across the XCMG empty container handler line lowers parts inventory and technician training cost for fleet operators running mixed 9-ton and 10-ton XCH variants. Parts support through both the XCMG channel and the global DANA + Kessler distribution networks.
