600-800 t/h Stabilized Soil Mixing Plant — Modular
Stationary stabilized soil mixing plant rated 600 to 800 t/h. Batching accuracy ±1.5 percent aggregate, ±1 percent powder, ±1 percent water. Total installed power 257 kW with 90 kW maximum on a single motor. Allowable aggregate top size under 60 mm. Modular combination layout on a 60 × 14 m footprint with frequency-controlled speed regulation across conveying and mixing drives. Produces cement, lime, and other binder mixtures for expressway, classified highway, municipal road, airport, dam, and freight yard base and subgrade work. Smaller-footprint sibling to the 1000 t/h XC1000S.

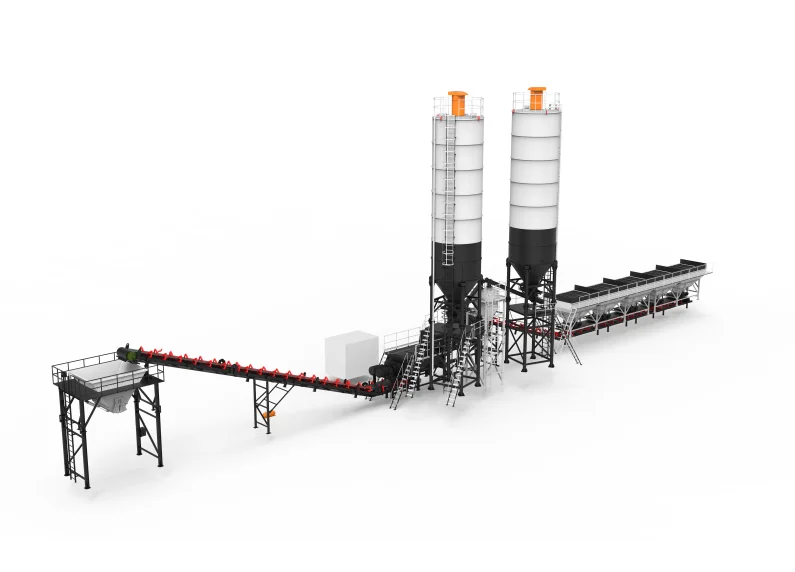

The XCMG XC800SC is a stationary stabilized soil mixing plant rated 600 to 800 t/h. It produces cement-, lime-, and other-binder mixtures for expressway, classified highway, municipal road, airport, dam, and freight yard base and subgrade work.
Batching accuracy is ±1.5 percent for aggregate, ±1 percent for powder, and ±1 percent for water — a tighter water tolerance is uncommon at this throughput class and helps keep mix moisture in the target band across long pours. Total installed power is 257 kW with 90 kW maximum on a single motor. Allowable aggregate top size is under 60 mm.
The plant uses a modular combination layout on a 60 × 14 m footprint, with frequency-controlled speed regulation across the conveying and mixing drives. Modular layout shortens relocation and re-erection time between project sites compared with monolithic skid-mounted plant — relevant for contractors who move plant between expressway packages.
The XC800SC is the smaller-footprint, smaller-power sibling to the 1000 t/h XC1000S. Pick by required throughput and site footprint: the XC800SC fits sites where 60 × 14 m can be laid out and 600 to 800 t/h covers the haul cycle.
Five aspects of the XC800SC that fit it to 600 to 800 t/h stabilized soil mixing work: rated productivity, batching accuracy, modular footprint, frequency control, and sibling positioning versus the XC1000S.
Sized at 600 to 800 t/h rated productivity — fits expressway, classified highway, municipal road, airport, dam, and freight yard base and subgrade work where the haul cycle from plant to spreader trains can absorb up to 800 t/h sustained output. For projects calling for 1000 t/h sustained, step up to the XC1000S sibling.
Batching accuracy of ±1.5 percent for aggregate, ±1 percent for powder (cement / lime / binder), and ±1 percent for water. Water tolerance at ±1 percent keeps mix moisture in the target band across long pours — relevant for projects where base layer 28-day strength specifications tie to moisture control through the mix train.
Modular combination layout on a 60 × 14 m site footprint. Modular construction shortens relocation and re-erection time between project sites compared with monolithic skid-mounted plant — relevant for contractors who move plant between expressway packages or sequential road project phases. Plan site grade and access roads for the 60 × 14 m operating envelope plus aggregate and powder silo run-up areas.
Frequency-controlled speed regulation across the conveying and mixing drives. VFD speed control allows mix rate trimming to match spreader uptake and supports softer motor start cycles — relevant for projects where motor in-rush spikes affect site power supply and where mix consistency requires drive-rate fine-tuning. Total installed power 257 kW with 90 kW maximum on a single motor.
The XC800SC pairs with the XC1000S in the XCMG stationary stabilized soil mixing plant range. XC800SC: 600 to 800 t/h, 257 kW, 60 × 14 m footprint, ±1 percent powder batching. XC1000S: 1000 t/h, 369 kW, 64 × 18 m footprint, ±0.8 percent powder batching. Pick by required throughput, available site footprint, and powder batching tolerance the project spec demands.
| Parameter | Unit | Value |
|---|---|---|
| Rated productivity | t/h | 600-800 |
| Batching accuracy — aggregate | % | ±1.5 |
| Batching accuracy — powder | % | ±1 |
| Batching accuracy — water | % | ±1 |
| Total installed power | kW | 257 |
| Max. single motor power | kW | 90 |
| Site footprint area | m² | 60 × 14 |
| Allowable aggregate size | mm | Less than 60 |
| Installation layout | - | Modular combination |
| Speed adjustment | - | Frequency control |
