Crawler-mounted soil stabilizer developed from the wheeled XL2503 platform. 2500 mm working width, 400 mm maximum milling depth, 1280 mm mixing rotor diameter with 198 picks on 41 mm spacing. Cummins X12 engine rated 343 kW at 2100 rpm, EU Stage V emission compliance. 23,500 kg machine weight, 9100 × 3100 × 3450 mm overall dimensions. The Cummins variant is the choice for EU Stage V jurisdictions and markets where Cummins service network coverage decides the parts logistics. Pairs with the TS2503 (Weichai) sibling for China Stage III markets.

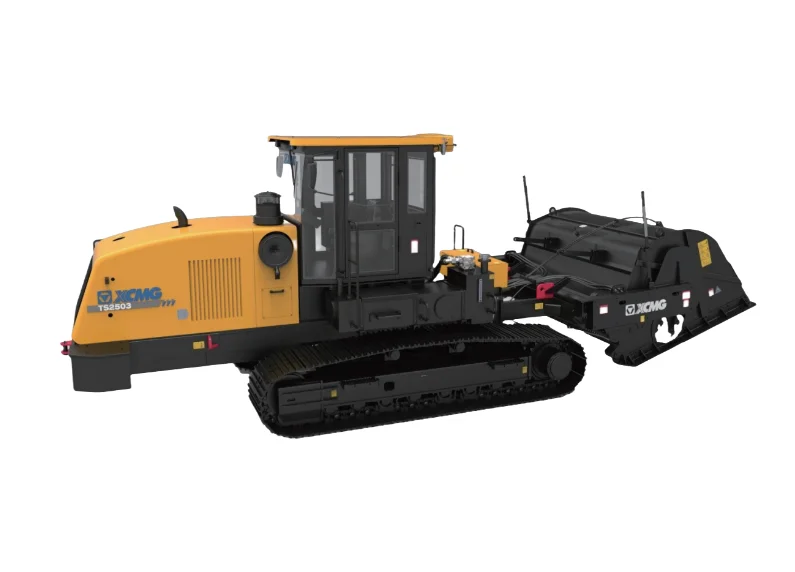

The XCMG TS2503 (Cummins) is a crawler-tracked in-place soil stabilizer with a 2,500 mm working width, 0–400 mm milling depth, and 1,280 mm diameter mixing rotor fitted with 198 picks. Cummins X12 engine rated 343 kW at 2,100 rpm, EU Stage V emission.
The TS2503 was developed from the wheeled XL2503 specifically for sites where wheel traction fails — wet pavements, slippery subgrade, and low-grade road bases. Crawler tracks replace wheels for on-site mixing of stabilized soil in base and subgrade layers. Used to mix grade I and II soil with stabilized material; allowed stone particle size under 40 mm. Capable of grade III and IV soil mixing as well. Machine weight 23,500 kg, overall dimensions 9,100 × 3,100 × 3,450 mm. The Cummins X12 variant fits projects in markets requiring Stage V emission certification — distinct from the sibling TS2503 (Weichai) which is China Stage III. Choose TS2503 when the project surface won't carry a wheeled stabilizer; choose XL2503 (wheeled) for normal traction conditions and faster transit between work sections.
