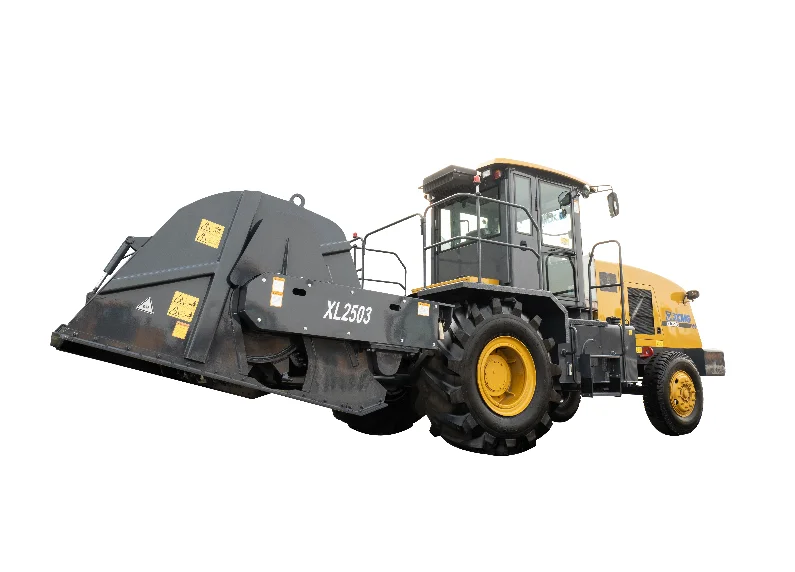

XCMG XL2503 Wheeled Soil Stabilizer

2,500 mm working width vs the 2,100 mm XL2103 — covers 19 percent more area per pass, reducing pass count on highway construction, wide urban roads, large squares, and infrastructure work. 184 picks vs 168 on the XL2103 matches the wider rotor. 1,280 mm rotor diameter, 0-400 mm milling depth covers typical base and subgrade mixing passes.

The XL2503 is the base machine that XCMG developed the TS2503 crawler stabilizer from — same 2,500 mm working width, same 1,280 mm rotor, similar power class. Pick XL2503 (wheeled) for normal traction and faster inter-section transit; pick TS2503 when wet pavement or slippery subgrade would cause wheel slip. Choosing one variant gives access to the same parts pool for the other.

Powered by the Weichai WP12G430E300 engine rated 316 kW at 1,900 rpm, China Stage III emission. 7 percent more power than the XL2103 (294 kW) and 7 percent less than the TS2503 Weichai variant (338 kW) — matched to the duty cycle of the 2.5 m wheeled stabilizer. Weichai parts and service network covers mainland China and major export markets.

Mixes lime-ash soil, lime-ash stabilized aggregate, and water-stabilized gravel at various proportions on the spot. Specified for in-place mixing of stabilized soil on base and subgrade layers of highways, urban roads, squares, wharfs, parking lots, and similar projects. 2.5 m pass width matches the segment widths typical on highway and infrastructure road work.

Manufactured by Xuzhou XCMG Road Construction Machinery Co., Ltd. — shares parts pool and service network with the XL2103 (wheeled, 2.1 m pass) and the crawler TS2503 (Cummins/Weichai). Picks, rotor segments, hydraulic components, and consumables align across the XCMG soil stabilizer fleet. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
