Crawler-mounted soil stabilizer developed from the wheeled XL2503 platform. 2500 mm working width, 400 mm maximum milling depth, 1280 mm mixing rotor with 198 picks on 41 mm spacing. Weichai WP12G460E300 engine rated 338 kW at 1900 rpm, China Stage III emission. Mixes grade I and II soil with stabilized material (aggregate under 40 mm) and handles grade III and IV soil. 23,500 kg machine weight, 9100 × 3100 × 3450 mm overall dimensions. Weichai variant is the China Stage III choice; the Cummins X12 sibling covers EU Stage V markets.

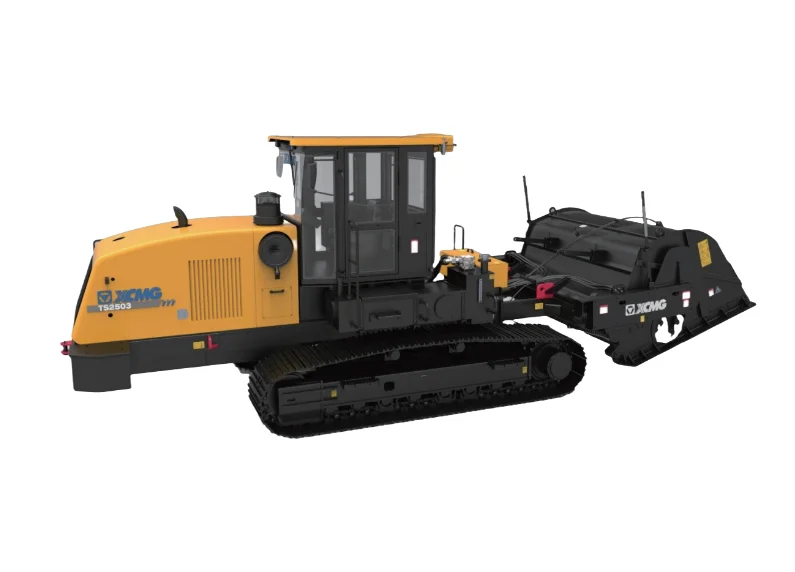

The XCMG TS2503 (Weichai) is a crawler-tracked in-place soil stabilizer with a 2,500 mm working width, 0–400 mm milling depth, and 1,280 mm diameter mixing rotor fitted with 198 picks. Weichai WP12G460E300 engine rated 338 kW at 1,900 rpm, China Stage III emission.
The TS2503 was developed from the wheeled XL2503 in response to user demand for better traction on slippery pavements. Crawler tracks replace wheels for on-site mixing of stabilized soil in base and subgrade layers of wet pavements with poor traction, and for low-grade pavement construction. Mixes grade I and II soil with stabilized material; allowed stone particle size under 40 mm. Capable of grade III and IV soil mixing as well. Machine weight 23,500 kg, overall dimensions 9,100 × 3,100 × 3,450 mm. The Weichai variant fits domestic Chinese project work and export markets accepting China Stage III emission — distinct from the sibling TS2503 (Cummins) which is EU Stage V. Choose TS2503 (Weichai) when emission certification permits and Weichai's established service network is preferable.
