Wheeled in-place stabilized soil mixer. 2,100 mm working width, 0-400 mm milling depth, 1,280 mm mixing rotor with 168 picks. Weichai WP12G400E300 engine rated 294 kW at 1,900 rpm, China Stage III emission. 15,600 kg machine weight, 8,740 × 2,765 × 3,450 mm overall dimensions. Mixes lime-ash soil, lime-ash stabilized aggregate, and water-stabilized gravel at various proportions on the spot for highways, urban roads, squares, wharfs, parking lots, and similar projects.

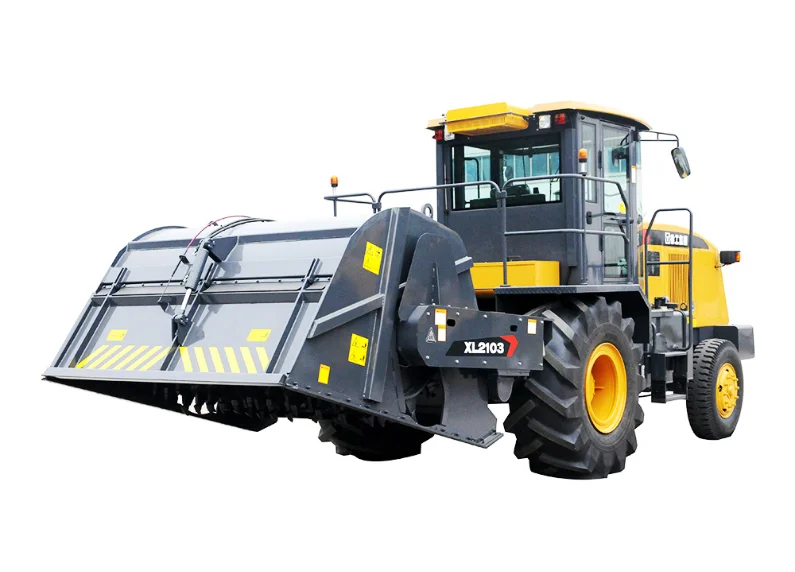

The XCMG XL2103 is a wheeled in-place soil stabilizer with a 2,100 mm working width, 0–400 mm milling depth, and 1,280 mm diameter mixing rotor fitted with 168 picks. Weichai WP12G400E300 engine rated 294 kW at 1,900 rpm.
The XL2103 mixes stabilized soil in base and subgrade layers of highways, urban roads, squares, wharfs, parking lots, and similar projects. It can mix lime-ash soil, lime-ash stabilized aggregate, and water-stabilized gravel at various proportions on the spot. Machine weight 15,600 kg, overall dimensions 8,740 × 2,765 × 3,450 mm. The narrower 2,100 mm working width vs the 2,500 mm XL2503 fits projects with tighter geometries — narrower carriageways, urban work where lane widths are constrained, or sites where a smaller pass width is preferred for mix control. Lower machine weight (15,600 kg vs 16,500 kg on the XL2503) and lower-power Weichai WP12G400 (294 kW vs 316 kW) match the lighter duty cycle. Choose XL2103 for the 2.1 m pass width range; XL2503 for 2.5 m; TS2503 when traction conditions demand crawler chassis.
