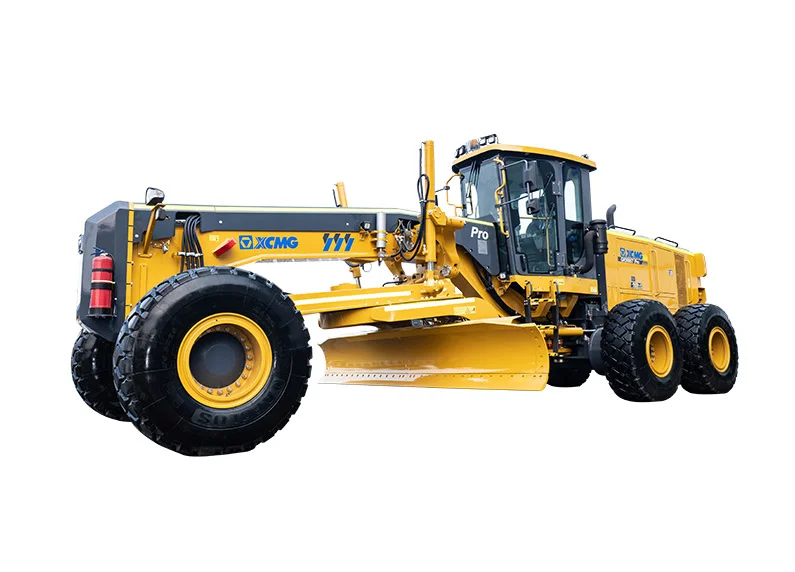

XCMG GR3005T Pro (Cummins) Motor Grader

4,572 x 686 mm blade is 25 percent wider than the 3,660 mm blade on the D-Series GR165 and GR180. On long mining haul-road grading runs, the wider cut reduces pass count per shift — relevant where fuel and operator-hour cost per finished kilometer is the binding constraint, not initial purchase price.

Traction force at f=0.75 at least 140 kN — 65 percent higher than the D-Series GR215's 85 kN. Maximum gradeability at least 30 percent versus 25 percent on the standard D-Series. Sized for hard mining surfaces, heavy bulldozing, and original landform finishing where construction-class graders run out of traction.

Cummins main engine delivers 242 kW at 2,200 rpm (about 331 HP). Cummins parts and service network is one of the broadest in the global mining sector — relevant for sites where engine-side downtime exposure drives the engine vendor decision. EU Stage III emission compliance.

The GR3005T Pro Weichai variant offers 247 kW with the same chassis, blade, traction force, and dimensions. Choose Cummins when the mine site or fleet already standardizes on Cummins parts and service. Choose Weichai when the regional service network or fleet engine standard favors Weichai. Functional grade output is essentially identical between the two variants.
