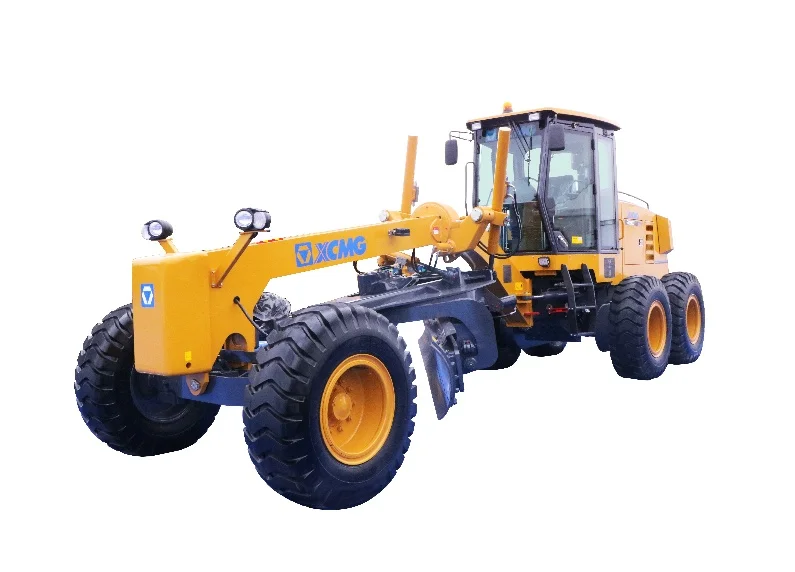

17-ton 3-Series motor grader. Cummins QSB6.7 main engine, 178 kW at 2,000 rpm (about 240 HP), EU Stage III emission. 3,965 x 610 mm blade — matches the D-Series GR215's blade. Traction force at f=0.75 at least 87 kN, maximum gradeability at least 25 percent, minimum turning radius 7.3 m. Six forward gears (5, 8, 11, 19, 23, 38 km/h) and three reverse gears (5, 11, 23 km/h). Standard dimensions 8,970 x 2,625 x 3,420 mm. Choose GR2403 over the D-Series GR215 (160 kW, EU Stage II) when project specs require EU Stage III emission certification.
The GR2403 is a 17-ton 3-Series motor grader sized for large-area ground leveling, trenching, slope scraping, bulldozing, ripping, and snow removal on highways, airports, farmlands, urban and rural road construction, water conservancy work, and farmland improvement. Also rated for heavy-duty conditions. The Cummins QSB6.7 main engine delivers 178 kW at 2,000 rpm (about 240 HP) with EU Stage III emission compliance — Stage III certification versus the EU Stage II rating on the D-Series GR165, GR180, GR215, and GR215A. The 3,965 x 610 mm blade matches the GR215. Six forward gears top out at 38 km/h with three reverse gears, traction force at f=0.75 is at least 87 kN, maximum gradeability at least 25 percent, minimum turning radius 7.3 m. Dimensions are 8,970 x 2,625 x 3,420 mm. Choose GR2403 over the D-Series GR215 (160 kW, EU Stage II) when project emission requirements call for EU Stage III certification while keeping the same 215-class chassis and blade envelope.
