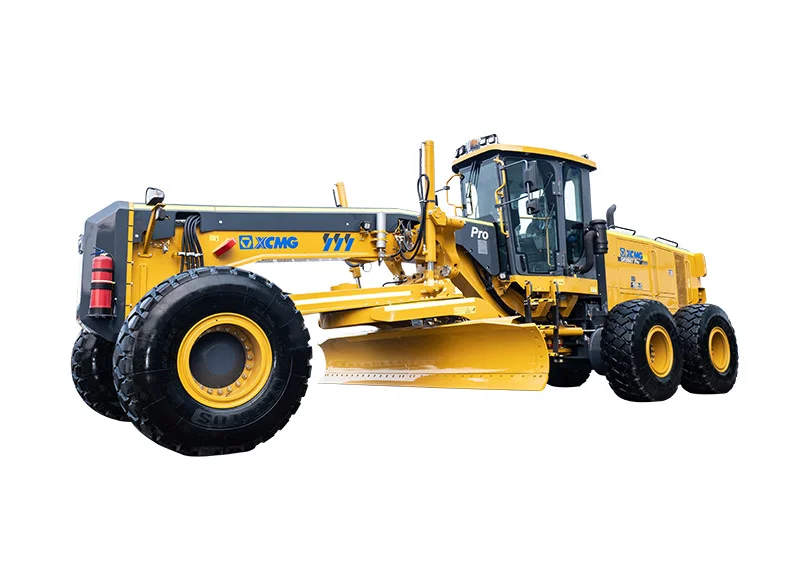

XCMG GR3005T Pro (Weichai) Motor Grader

4,572 x 686 mm blade is 25 percent wider than the 3,660 mm blade on the D-Series GR165 and GR180. On long mining haul-road grading runs, the wider cut reduces pass count per shift — relevant where fuel and operator-hour cost per finished kilometer is the binding constraint, not initial purchase price.

Traction force at f=0.75 at least 140 kN — 65 percent higher than the D-Series GR215's 85 kN. Maximum gradeability at least 30 percent versus 25 percent on the standard D-Series. Sized for hard mining surfaces, heavy bulldozing, and original landform finishing where construction-class graders run out of traction.

Weichai main engine delivers 247 kW at 2,200 rpm (about 331 HP). Weichai is one of China's top three commercial vehicle engine manufacturers — established parts and service network across mainland China and major export markets. EU Stage III emission compliance. 2 percent more rated power than the Cummins variant's 242 kW.

The GR3005T Pro Cummins variant offers 242 kW with the same chassis, blade, traction force, and dimensions. Choose Weichai when the mine site or regional dealer favors Weichai service. Choose Cummins when the fleet standardizes on Cummins parts coverage. Functional grade output is essentially identical between the two variants.

Blade components, hydraulic fittings, cab parts, and articulated chassis components share core part numbers with the D-Series (GR135, GR165, GR180, GR215, GR215A), 5-Series (GR2605AT), and 3-Series (GR1003, GR2403) XCMG graders. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
