19.5 Ton XCMG 5-Series Motor Grader — Shangchai SC9DK260G3 192 kW
19.5-ton 5-Series motor grader. Shangchai SC9DK260G3 main engine, 192 kW (about 260 HP), EU Stage III emission. 3,965 x 610 mm blade — 8 percent wider than the Cummins variant's 3,660 mm blade for slightly fewer passes on long shallow grading. Traction force at f=0.75 at least 135 kN, maximum gradeability at least 25 percent, minimum turning radius 7.8 m. Six forward gears (5, 9, 14, 22, 33, 48 km/h) and three reverse gears (6, 15, 35 km/h). Dimensions 9,680 x 2,750 x 3,500 mm. Sibling to the Cummins QSL8.9 variant (194 kW, 3,660 mm blade).

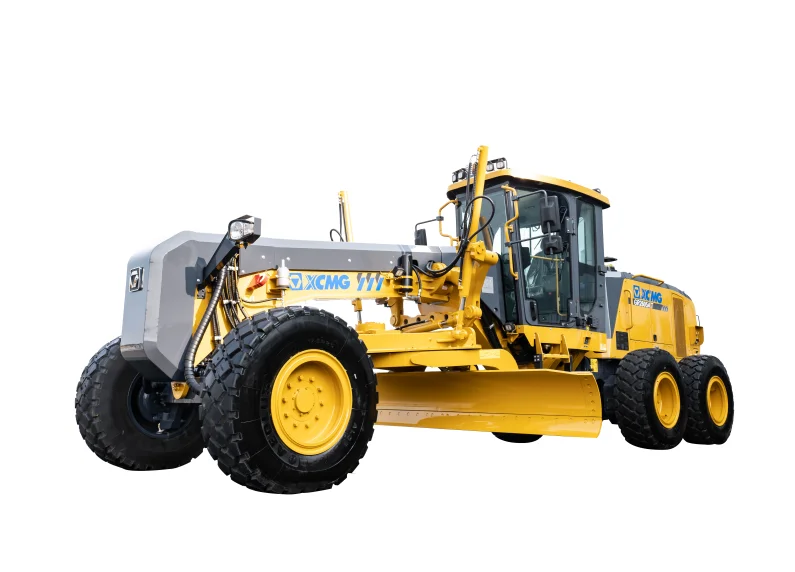

The GR2605AT (Shangchai) is a 19.5-ton 5-Series motor grader sized for heavy-duty road, airport, and stable-layer leveling, plus open-pit roadbed mixture spreading and original landform reconditioning. The Shangchai SC9DK260G3 main engine delivers 192 kW (about 260 HP) with EU Stage III emission compliance. The 3,965 x 610 mm blade is wider than the 3,660 mm blade on the Cummins variant — about 8 percent more cut per pass on long shallow grading work. Six forward gears (5, 9, 14, 22, 33, 48 km/h) and three reverse gears (6, 15, 35 km/h). Traction force at f=0.75 is at least 135 kN, maximum gradeability at least 25 percent, minimum turning radius 7.8 m. Dimensions are 9,680 x 2,750 x 3,500 mm. Choose the Shangchai variant when the project matches the Shangchai service network or when the slightly wider blade reduces pass count on long haul roads. The Cummins sibling (GR2605AT Cummins, 194 kW) suits projects standardized on Cummins parts coverage.
Five aspects of the GR2605AT Shangchai that fit it to heavy-duty 5-Series motor grader work: heavy-duty chassis sizing, Shangchai SC9DK260G3 powertrain, 3,965 mm wider blade, sibling positioning vs the Cummins variant, and parts compatibility across the XCMG grader range.
3,965 x 610 mm blade is 8 percent wider than the Cummins variant's 3,660 mm blade. On long shallow grading runs (airport leveling, highway base-layer work), the wider cut reduces pass count per shift — fewer operator hours and less fuel burn per finished kilometer.
Shangchai SC9DK260G3 main engine delivers 192 kW (about 260 HP), EU Stage III emission. Shangchai (Shanghai Diesel) has established service coverage across China inland markets and Belt-and-Road export destinations. Choose when project specs call for Shangchai service network or fleet standardization on Shangchai parts.
Specified for highway and airport leveling and stable-layer work, open-pit roadbed mixture spreading, original landform reconditioning, and snow removal. Same broad multi-sector range as the lighter D-Series but with heavier-duty headroom for sustained work cycles.
The GR2605AT Cummins variant offers 194 kW with the QSL8.9 engine and a narrower 3,660 mm blade. Choose Shangchai when the project benefits from the wider 3,965 mm blade or matches Shangchai service coverage. Choose Cummins when project specs call for Cummins parts standardization.
Blade components, hydraulic fittings, cab parts, and articulated chassis components share core part numbers with the D-Series (GR135, GR165, GR180, GR215, GR215A), mining-class (GR3005T Pro), and 3-Series (GR1003, GR2403) XCMG graders. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | Shangchai SC9DK260G3 |
| Rated power / speed | kW/rpm | 192 / 2200 |
| Machine dimension (L×W×H) | mm | 9680 × 2750 × 3500 |
| Machine weight | kg | 19500 |
| Drive speed, forward | km/h | 5, 9, 14, 22, 33, 48 |
| Drive speed, reverse | km/h | 6, 15, 35 |
| Traction force (f=0.75) | kN | ≥ 135 |
| Maximum gradeability | % | ≥ 25 |
| Minimum turning radius | m | 7.8 |
| Blade length × height | mm | 3965 × 610 |
| Emission standard | - | EU Stage III |
