20-ton 5-Series motor grader. Cummins QSL8.9 main engine, 194 kW at 2,200 rpm (about 260 HP), EU Stage III emission. 3,660 x 610 mm blade — standard 5-Series width. Traction force at f=0.75 at least 129 kN, maximum gradeability at least 25 percent, minimum turning radius 7.8 m. Six forward gears (5, 9, 14, 22, 34, 48 km/h) and three reverse gears (6, 15, 35 km/h). Dimensions 9,680 x 2,750 x 3,500 mm. Sibling to the Shangchai variant (SC9DK260G3, 192 kW, 3,965 mm blade).

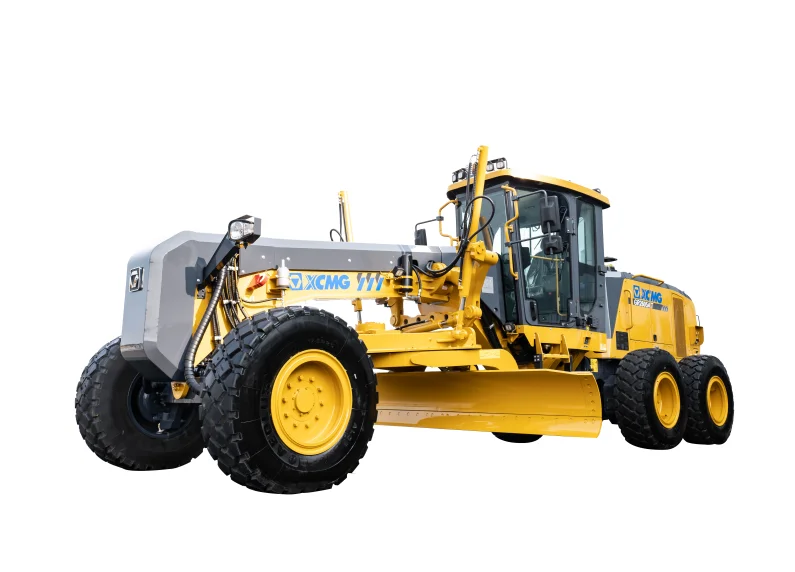

The GR2605AT (Cummins) is a 20-ton 5-Series motor grader sized for heavy-duty road, airport, and stable-layer leveling, plus open-pit roadbed mixture spreading and original landform reconditioning. The Cummins QSL8.9 main engine delivers 194 kW at 2,200 rpm (about 260 HP) with EU Stage III emission compliance. The 3,660 x 610 mm blade is standard 5-Series width, suited to projects where a 4,572 mm mining-class blade is more cutter than needed. Six forward gears (5, 9, 14, 22, 34, 48 km/h) and three reverse gears (6, 15, 35 km/h). Traction force at f=0.75 is at least 129 kN, maximum gradeability at least 25 percent, minimum turning radius 7.8 m. Dimensions are 9,680 x 2,750 x 3,500 mm. Choose the Cummins variant when project specifications call for Cummins parts standardization or when the fleet already runs on Cummins coverage. The Shangchai sibling (GR2605AT Shangchai, 192 kW) covers projects matching the Shangchai service network.
