Tracked movable cone crushing station with 110–440 t/h handling capacity. Curb weight 63,750 kg with material-return conveyor; 57,400 kg without. Multi-cylinder hydraulic cone crusher (multi-cylinder cavity-release and CSS adjustment), hydraulic lubrication system, and self-adaptive engine-power matching that adjusts engine output to crushing load in real time. Working travel 0.8–1.1 km/h, 11° max gradeability. Tank capacities: 750 L fuel, 260 L hydraulic oil, 300 L lubrication oil — sized for full-shift autonomous operation. Fits coarse, intermediate, and fine crushing of abrasive natural stone and mining-sector feed prep.

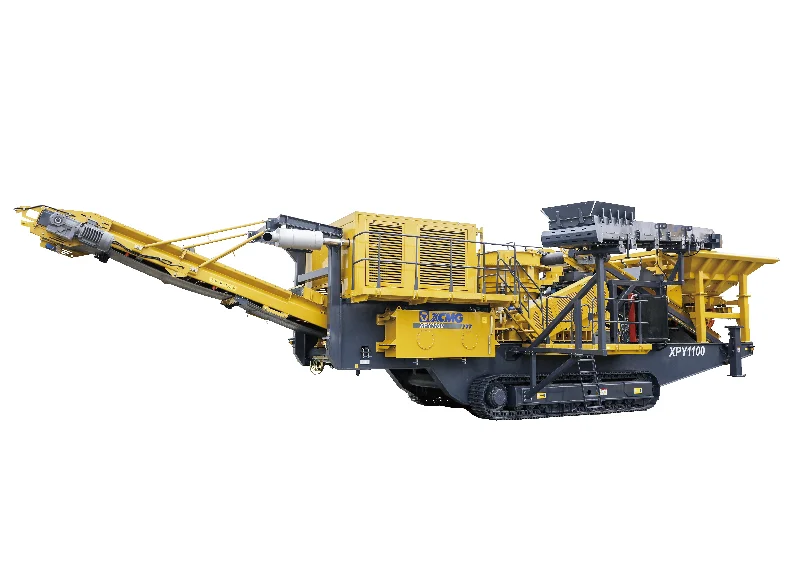

XPY1100 is a tracked movable cone crushing station with 110–440 t/h handling capacity. Curb weight is 63,750 kg with the material-return conveyor or 57,400 kg without it — the return conveyor adds about 6.4 tons of plant weight but closes the crushing loop on a single mobile unit.
It is equipped with a multi-cylinder hydraulic cone crusher (multiple hydraulic cylinders for cavity-release and CSS adjustment, vs single-cylinder designs such as the XGY1100D), a hydraulic lubrication system, and self-adaptive engine-power matching that matches engine output to the crushing load in real time, lowering fuel burn during light feed periods.
Working travel speed is 0.8–1.1 km/h with 11° max grade ability. Fuel tank is 750 L, hydraulic oil tank 260 L, lubrication oil tank 300 L — sized for full-shift autonomous operation between refuelling stops at remote mining sites. Application focus is coarse crushing of highly abrasive natural stones, intermediate and fine crushing, with reach into mining-sector feed prep. The plant fits secondary or tertiary stage in a multi-stage mobile line downstream of a primary jaw, or as the primary cone on softer-feed projects.
