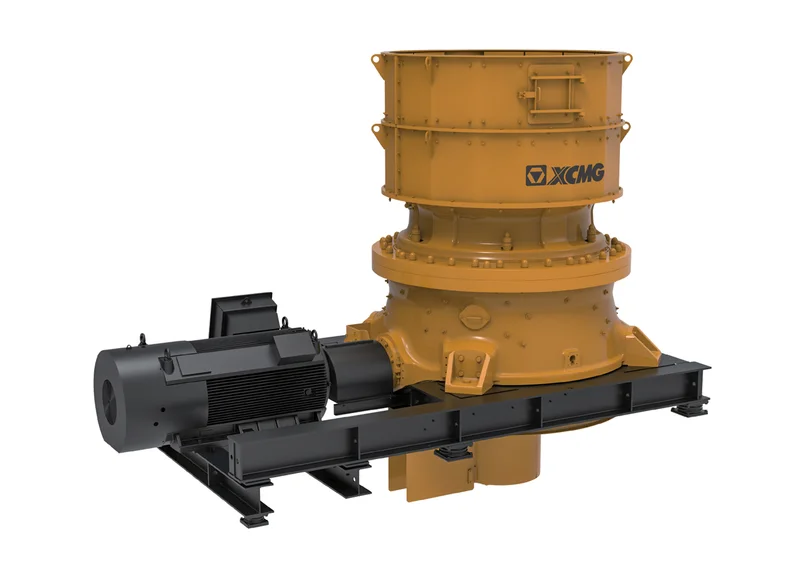

110–662 t/h XCMG Single-Cylinder Cone Crusher — 8–51 mm Fines Discharge
Large-size single-cylinder cone crusher for tertiary fine crushing. 321 mm maximum feedstock, 8–51 mm discharge opening, 110–662 t/h productivity. 315 kW motor through belt drive, 1490 ±5 rpm horizontal shaft. 31.42 t (±500 kg) machine weight, 3170 × 2750 × 3153 mm footprint. Hydraulic single-cylinder adjustment for discharge gap and tramp-iron release. The tightest discharge band in the XGY single-cylinder line — fits fines production for aggregate, mining, metallurgy and building material plants.
The XCMG XGY1300D is a large-size single-cylinder cone crusher built for fine tertiary crushing in aggregate, mining, metallurgy and building-material lines. 321 mm maximum feedstock, 8–51 mm discharge opening, 110–662 t/h productivity. 315 kW motor through belt drive, 1490 ±5 rpm horizontal shaft. 31.42 t (±500 kg) machine weight, 3170 × 2750 × 3153 mm footprint.
The 8–51 mm discharge band is tighter than the XGY1100DII (25–54 mm) and XGY1300DII (35–83 mm) siblings — the XGY1300D is positioned for fine sized-product work where downstream screens demand 8–25 mm fines without re-circulation. 110 t/h low-end throughput suits closed-circuit operation where re-circulation load varies through the shift.
Single-cylinder hydraulic adjustment means discharge gap is set hydraulically rather than via mechanical shim packs — gap calibration takes minutes between shifts, and the same cylinder carries tramp-iron release if uncrushable material enters the chamber. Pairs with XGE jaw crushers for primary reduction and XGY1100DII or XGY1300DII for upstream secondary work. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGY1300D that fit it to fine tertiary cone crushing in aggregate and mining plants: tight discharge band, throughput envelope, hydraulic adjustment, line position, and sector fit.
8–51 mm discharge opening band, tighter than the XGY1100DII (25–54 mm) and XGY1300DII (35–83 mm) siblings. Suited for fine sized-product work where downstream screens demand 8–25 mm fines without re-circulation, and for closed-circuit operations where re-circulation load varies through the shift.
110–662 t/h throughput range. Wide low-end (110 t/h) supports closed-circuit operation where re-circulation load varies, while 662 t/h high-end supports primary-flow tertiary work in larger plants. Pairs with XGE jaw crushers for primary reduction and XGY1100DII or XGY1300DII for upstream secondary work.
Single hydraulic cylinder sets discharge gap and carries tramp-iron release. Discharge gap calibration is hydraulic rather than via mechanical shim packs — minutes between shifts. The same cylinder lifts the mantle when uncrushable material enters the chamber, then resets without manual disassembly.
315 kW motor coupled via belt drive to a 1490 ±5 rpm horizontal shaft. Belt drive isolates motor from shock-load events at the crushing chamber. Standard belt consumables, no proprietary coupling required.
Specified for mining ore reduction (tertiary stage), water-engineering aggregate fines supply, metallurgical pre-treatment fines, and building-material crushed-stone fines production. Hard-rock specification — pairs with XGE jaw crushers upstream.
| Parameter | Unit | Value |
|---|---|---|
| Max. feedstock size | mm | 321 |
| Range of discharge opening | mm | 8–51 |
| Productivity | t/h | 110–662 |
| Driving type | - | Belt drive |
| Motor power | kW | 315 |
| Horizontal shaft speed | rpm | 1490 ±5 |
| Overall weight | kg | 31420 ±500 |
| Overall dimensions (L×W×H) | mm | 3170 × 2750 × 3153 |
Tell us your spec, budget, and destination port. You'll get a matching shortlist with photos, working videos, and pricing within 24 hours.
