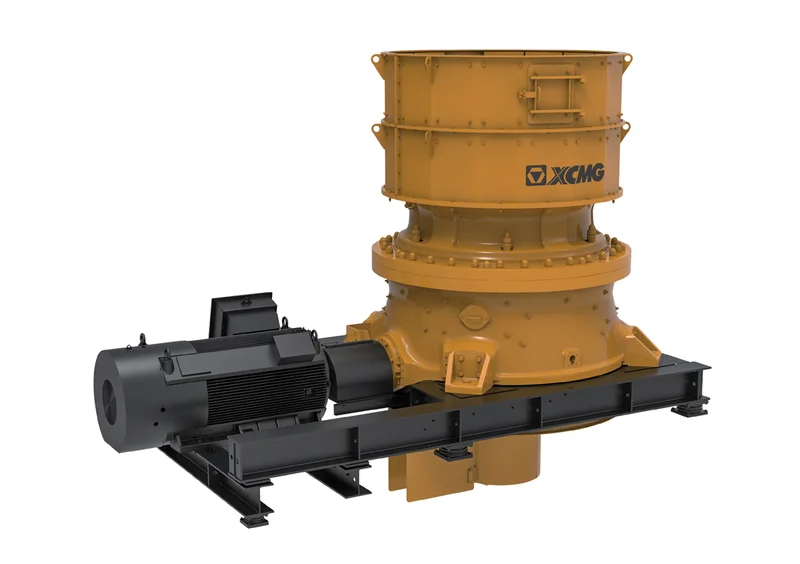

330–790 t/h XCMG Single-Cylinder Cone Crusher — Top of XGY Line
Top-throughput single-cylinder cone crusher in the XCMG XGY line. 560 mm maximum feedstock, 35–83 mm discharge opening, 330–790 t/h productivity. 315 kW motor through belt drive, 1495 rpm horizontal shaft speed. 48.35 t machine weight, 4800 × 2853 × 4506 mm footprint. Built for high-volume secondary crushing in aggregate, mining, metallurgy and building-material plants. Hydraulic single-cylinder adjustment for discharge gap and tramp-iron release.
The XCMG XGY1300DII is the top-throughput single-cylinder cone crusher in the XCMG XGY line on me-equipment.com. Built for second-stage and third-stage crushing in aggregate, mining, metallurgy and building-material lines. 560 mm maximum feedstock, 35–83 mm discharge opening, 330–790 t/h productivity. 315 kW motor through belt drive, 1495 rpm horizontal shaft. 48.35 t machine weight, 4800 × 2853 × 4506 mm footprint.
The 330 t/h low-end and 790 t/h high-end position the XGY1300DII for high-volume secondary crushing — sustained throughput where the XGY1100DII (195–601 t/h) caps out and the fine-discharge XGY1300D (8–51 mm band) is too narrow. The 35–83 mm discharge band fits secondary positioning, feeding downstream screens for 20–80 mm aggregate product.
Single-cylinder hydraulic adjustment means discharge gap is set hydraulically rather than via mechanical shim packs — gap calibration takes minutes between shifts, and the same cylinder carries tramp-iron release. The 560 mm feedstock envelope accepts primary-stage output from XGE0812 (760 × 1150 mm chamber) and XGE0810 (1060 × 700 mm chamber) jaw crushers for direct upstream pairing. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGY1300DII that fit it to high-volume secondary cone crushing in 500–800 t/h aggregate and mining plants: throughput envelope, discharge band, hydraulic adjustment, line position vs siblings, and sector fit.
Rated 330–790 t/h productivity — highest in the XCMG XGY single-cylinder cone crusher line sold via me-equipment.com. Sized for high-volume secondary crushing where the XGY1100DII (195–601 t/h) caps out. Suits aggregate plants and mining lines targeting 500–800 t/h sustained tonnage.
560 mm maximum feedstock — largest in the XGY single-cylinder line. Accepts primary-stage output from XGE0812 (760 × 1150 mm chamber) and XGE0810 (1060 × 700 mm chamber) jaw crushers for direct upstream pairing without intermediate sizing.
35–83 mm discharge opening band. Secondary positioning — feeds downstream screens for 20–80 mm aggregate product. Wider band than the XGY1300D (8–51 mm fines band) — XGY1300DII is for tonnage, XGY1300D is for fines.
Single hydraulic cylinder sets discharge gap and carries tramp-iron release. Discharge gap calibration is hydraulic rather than via mechanical shim packs — minutes between shifts. The same cylinder lifts the mantle when uncrushable material enters the chamber, then resets without manual disassembly.
The XCMG XGY single-cylinder cone line covers three positions: XGY1100DII for mid-tonnage secondary (195–601 t/h, 25–54 mm discharge, 19.3 t), XGY1300D for fine tertiary (110–662 t/h, 8–51 mm discharge, 31.42 t), and XGY1300DII for high-tonnage secondary (330–790 t/h, 35–83 mm discharge, 48.35 t). Wear parts (mantles, concaves) share part numbers across the line.
| Parameter | Unit | Value |
|---|---|---|
| Max. feedstock size | mm | 560 |
| Range of discharge opening | mm | 35–83 |
| Productivity | t/h | 330–790 |
| Driving type | - | Belt drive |
| Motor power | kW | 315 |
| Horizontal shaft speed | rpm | 1495 |
| Overall weight | kg | 48346 |
| Overall dimensions (L×W×H) | mm | 4800 × 2853 × 4506 |
