450–700 t/h XCMG Impact Crusher — 2310×1130 mm Feed Inlet
Top-end XCMG impact crusher for ≤150 MPa natural stone and C&D waste recycling. 600 mm maximum feedstock, 2310 × 1130 mm feed inlet, 450–700 t/h productivity, 0–40 mm discharge (70%–85% within range). 2 × 315 kW motors driving the rotor through a 20-belt narrow V-belt arrangement (630 kW installed). 46 t machine weight, 5000 × 3995 × 3992 mm footprint. Above the XGF1520 (350–600 t/h) and XGF1320 (300–500 t/h) in the XCMG impact crusher line.

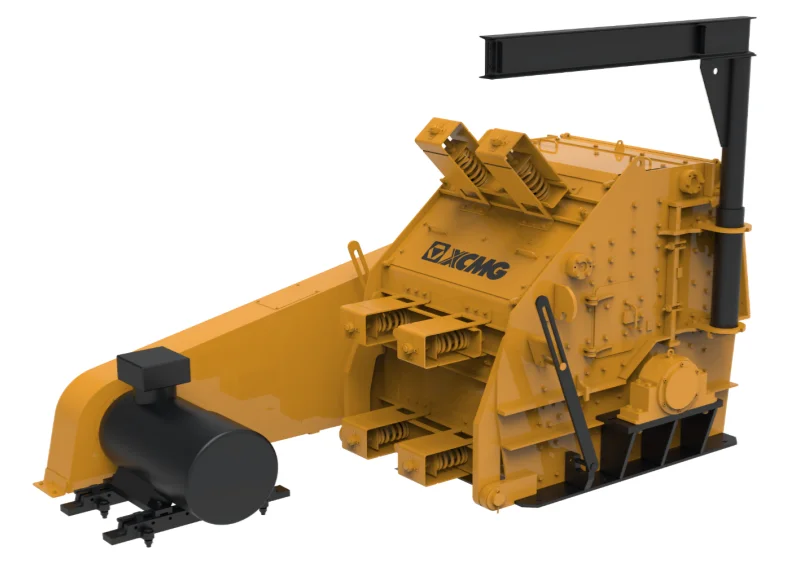

The XCMG XGF1523 is the top-end model in the XCMG impact crusher line on me-equipment.com. Built for natural stones up to 150 MPa and construction-waste recycling. 600 mm maximum feedstock, 2310 × 1130 mm feed inlet, 450–700 t/h productivity, 0–40 mm discharge opening (70%–85% of product within range). 46 t machine weight, 5000 × 3995 × 3992 mm footprint.
Drive is motor plus narrow V-belt — twenty V-belts to two 315 kW motors (630 kW installed). V-belts absorb impact shock from the chamber without transferring it to the motor shaft; replacement belts are a standard wear part.
The XGF1523 sits above the XGF1520 (500 mm feedstock, 350–600 t/h, 2×250 kW) and XGF1320 (400 mm feedstock, 300–500 t/h, 2×160 kW). The 600 mm feed envelope matches output from larger primary jaw crushers — pairs with XGE0812 (≤760 mm chamber) for plant lines targeting 450–700 t/h. Fits stationary aggregate production at the upper end of the XGF range, large urban C&D recycling lines, and limestone-class quarry plant. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGF1523 that fit it to top-end secondary impact crushing in 500–700 t/h plants: throughput, feed envelope, V-belt drive, line position, and target sectors.
Rated 450–700 t/h productivity with 2 × 315 kW (630 kW) installed motor power — the highest throughput in the XCMG XGF impact crusher line. Sized for stationary aggregate plants targeting 500–700 t/h, large urban C&D recycling lines, and limestone-class quarry plant.
Accepts 600 mm maximum feedstock through a 2310 × 1130 mm feed inlet — the widest inlet in the XGF series. Matches output from larger XCMG XGE primary jaw crushers (XGE0812 1150 mm chamber dimension), enabling direct upstream pairing in plant lines targeting 450–700 t/h.
Motor + narrow V-belt drive with 20 belts splitting load between two 315 kW motors and the rotor shaft. V-belts absorb shock loading from oversize or tramp feedstock without transferring it to the motor shaft. Belts are standard wear consumables — replaceable from open-market suppliers rather than requiring OEM-restricted spares.
Specified for ≤150 MPa materials: limestone, dolomite, soft-to-medium sandstone, demolition concrete, and reclaimed asphalt pavement (RAP). Not specified for hard quartzite or basalt above 150 MPa — those workloads belong on the XGY single-cylinder or XPY multi-cylinder cone lines.
Top of the XGF impact crusher series sold via me-equipment.com. Above the XGF1320 (400 mm feedstock, 30.2 t) and XGF1520 (500 mm feedstock, 38.5 t). 46 t machine weight reflects larger chamber and motor sizing. Parts overlap across the XGF line — rotors, blow bars, impact plates share part numbers — lowers inventory carrying cost for operators running mixed XGF rosters.
| Parameter | Unit | Value |
|---|---|---|
| Hardness of crushed materials | MPa | ≤150 |
| Max. feedstock size | mm | 600 |
| Feed inlet dimensions | mm | 2310 × 1130 |
| Range of discharge opening | mm | 0–40 (70%–85%) |
| Productivity | t/h | 450–700 |
| Driving type | - | Motor + narrow V belt |
| Number of narrow V-belts | - | 20 |
| Motor power | kW | 2 × 315 |
| Overall weight | t | 46 |
| Overall dimensions (L×W×H) | mm | 5000 × 3995 × 3992 |
