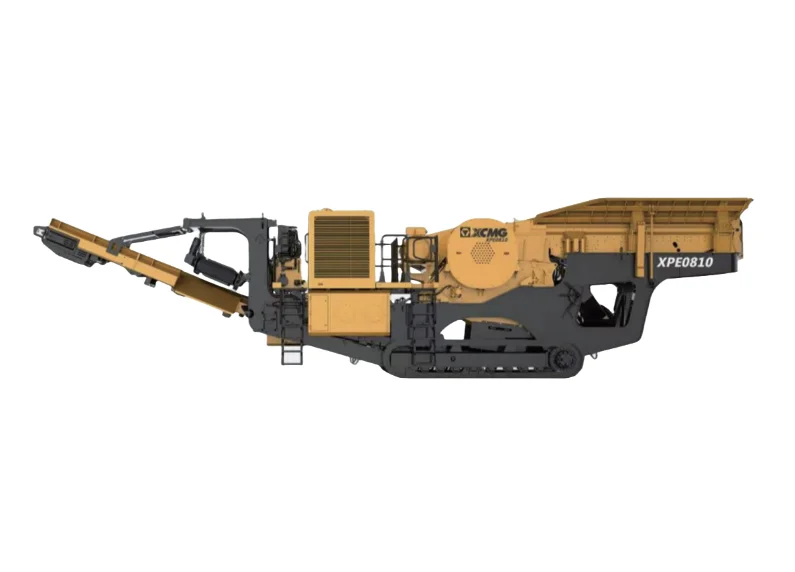

Tracked movable jaw crushing station with 45,000 kg overall weight and 140–300 t/h handling capacity. Serves as primary breaker for rocks, ores, and construction waste. Supports both diesel-engine drive and external mains-power drive — grid sites cut fuel cost; off-grid mining and remote sites run on the onboard diesel. Working dimensions 15,280 × 4,660 × 3,820 mm. Transport dimensions 15,650 × 2,963 × 3,645 mm. Travel speed 0.9/0.5 km/h two-gear, 13° gradeability, 244 mm min ground clearance. Fits quarries, mining sites, and construction-waste recycling pads.
XPE0810 is a tracked movable jaw crushing station with 45,000 kg overall weight and 140–300 t/h handling capacity. It serves as a primary breaker for rocks, ores, and construction waste — the first stage in a mobile crushing line where the project moves between feed piles rather than running a fixed plant.
The unit supports both diesel-engine drive and external mains-power drive. On grid sites the external-power mode cuts fuel cost and reduces engine-hours wear; off-grid mining and remote-site work runs on the onboard diesel. The dual-drive option was an early entry into the domestic Chinese movable-jaw market and remains a practical fit for fleets that rotate between on-grid and off-grid sites.
Working dimensions are 15,280 × 4,660 × 3,820 mm, transport dimensions 15,650 × 2,963 × 3,645 mm. Min ground clearance is 244 mm. Travel speed is 0.9 / 0.5 km/h in two gears with 13° grade ability, sized for on-site repositioning rather than self-transit between projects. Application focus covers quarries, mining sites, and construction-waste recycling pads where a primary jaw on tracks fits the daily move-and-feed workflow.
