Electric Vacuum Road Sweeper — 282 kWh BEV / Zero Emission
Battery-electric vacuum road sweeper on XGA1181BEVEAX BEV chassis with 282 kWh battery pack. Zero tailpipe emission during operation. 10 m³ powder silo (effective not below 4.5 m³), 3200 mm working width with side brush, 2300 mm without. Drive motor rated 110 kW at 2100 r/min. Total weight 18000 kg, overall dimensions 9400 × 2550 × 3240 mm. One-key wet/dry mode switching for urban roads, ports, steel mills, coal mines, cement plants and other fixed industrial sites.

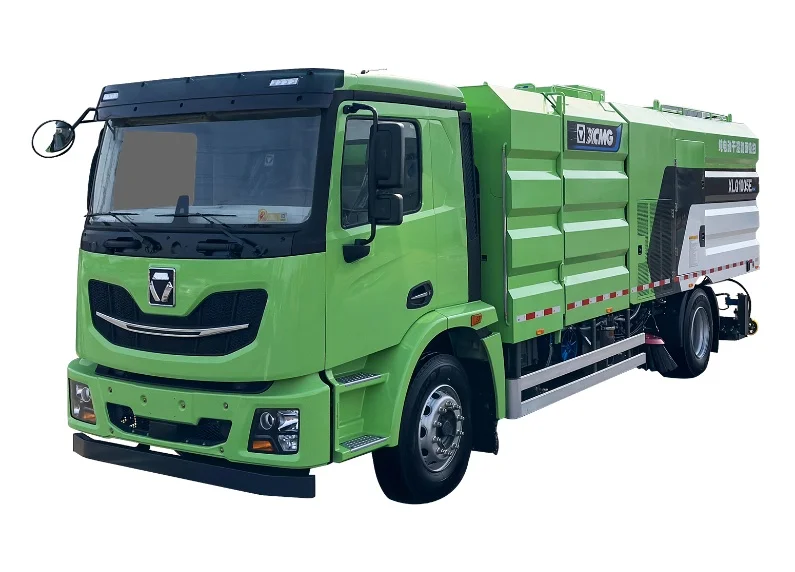

The XCMG XLQ1005E is the battery-electric variant of the XLQ1005 vacuum road sweeper. Built on an XGA1181BEVEAX BEV chassis with a 282 kWh chassis battery — zero tailpipe emission during operation. One-key wet/dry switching for all-weather cleanup.
10 m³ powder silo (effective volume not below 4.5 m³). Working width 3200 mm with side brush, 2300 mm without — wider than the diesel XLQ1005 sibling at 2650 / 2300 mm. Engine power 110 kW at 2100 r/min (electric drive motor). Total weight 18000 kg. Overall dimensions 9400 × 2550 × 3240 mm.
Targets urban pavement milling-material cleanup, plus ports, steel mills, coal mines, cement plants, and other fixed-site industrial yards. The BEV chassis with 282 kWh battery pack fits operators with depot charging infrastructure and emission-restricted urban or indoor industrial zones where diesel sweepers are excluded by air-quality regulation or facility policy. Choose XLQ1005E over the diesel XLQ1005 when zero-emission operation is a hard requirement.
Five aspects of the XLQ1005E that fit it to emission-restricted urban and industrial sweeping work: BEV chassis with 282 kWh battery, zero tailpipe emission, wider 3200 mm sweeping width than diesel sibling, one-key wet/dry switching, and industrial-site application fit.
Built on the XCMG-Group XGA1181BEVEAX battery-electric chassis with 282 kWh on-board battery capacity. Drive motor rated 110 kW at 2100 r/min. Single-shift sweeping work without engine idling, fuel handling, or tailpipe exhaust during operation.
Zero tailpipe emission during operation. Fit for urban low-emission zones, indoor industrial yards (steel mill, cement plant, coal mine indoor work areas), and any facility with air-quality regulation or internal policy excluding diesel-sweeper operation. Choose XLQ1005E over diesel XLQ1005 when zero-emission operation is a hard requirement.
Working width 3200 mm with side brush deployed, 2300 mm with side brush retracted. The 3200 mm with-brush width is 550 mm wider than the diesel XLQ1005 sibling at 2650 mm — covers more lane area per pass on industrial-yard sweeping work where road geometry permits the wider footprint.
One-key switch between wet and dry sweeping modes. Wet for dust suppression and fine-dust capture in coal mines and cement factories; dry for cold seasons and recovery of dry milling chips or aggregate where water contamination is undesirable.
Specified for urban pavement milling-material cleanup, plus port-yard sweeping, steel mill fixed-site cleanup, coal mine surface work area sweeping, and cement plant facility cleanup. Industrial-site sweeping at zero tailpipe emission suits facilities with indoor or semi-enclosed sweep zones where diesel exhaust is excluded.
| Parameter | Unit | Value |
|---|---|---|
| Chassis | - | XGA1181BEVEAX (BEV) |
| Powder silo capacity | m³ | 10 (effective ≥ 4.5) |
| Working width | mm | 3200 / 2300 (with/without side brush) |
| Drive motor power / speed | kW / r/min | 110 / 2100 |
| Chassis battery capacity | kWh | 282 |
| Overall dimensions | mm | 9400×2550×3240 |
| Total weight | kg | 18000 |
