Powder Binder Spreader — 16 m³ Silo / ±5% Precision
Powder binder spreader for distributing cement, lime, fly ash, and other powder materials. 16 m³ filler silo, spreading width adjustable from 400 mm to 2400 mm, spreading density 5 to 30 kg/m² at ±5 percent precision. Minimum working speed 2.5 km/h. Curb weight 17250 kg, total weight 25000 kg, 400 L fuel tank, overall dimensions 9550 × 2550 × 3350 mm. Used for cement spraying on highway cold-regeneration projects, stabilized soil and adhesive spraying for roadbed work.

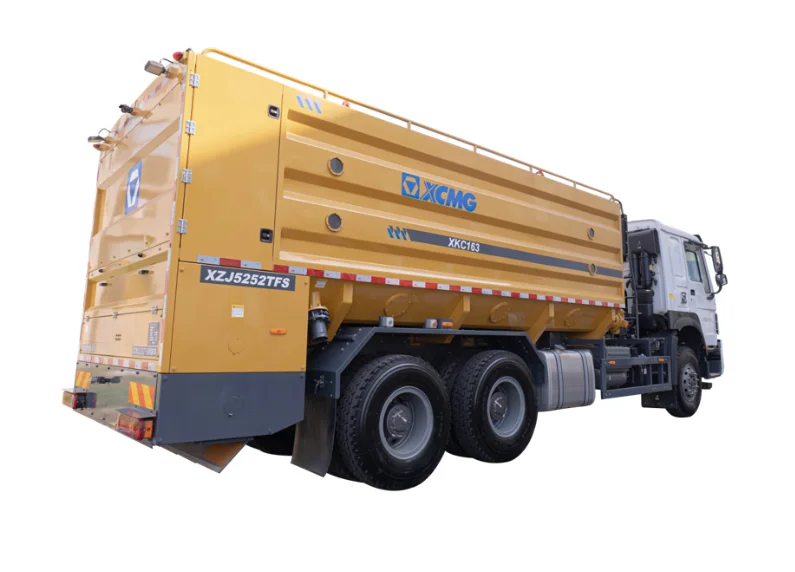

The XCMG XKC163 is a powder binder spreader for distributing cement, lime, fly ash, and other powder binders. Targets cement spraying for highway cold-regeneration construction, stabilized soil and adhesive spraying for roadbed, and general powder-material spraying for other working conditions.
16 m³ filler silo capacity. Spreading width adjustable from 400 mm to 2400 mm. Spreading density 5 to 30 kg/m². Spreading precision within ±5 percent. Minimum working speed 2.5 km/h. 400 L fuel tank. Curb weight 17250 kg, total weight 25000 kg. Overall dimensions 9550 × 2550 × 3350 mm.
±5 percent spreading precision and 5 to 30 kg/m² density range cover the application rates required for cold-recycling pavement projects (typical cement dosage 3 to 6 percent by weight) and stabilized-soil roadbed treatment. The 400 mm to 2400 mm width range fits both narrow trench-bottom and full-lane-width binder distribution without secondary equipment.
Five aspects of the XKC163 that fit it to cement-spraying and roadbed-binder distribution work: 16 m³ silo, broad 400-2400 mm width range, ±5% spreading precision, three-binder-material flexibility, and cold-recycling and stabilized-soil application fit.
16 m³ filler silo. Sized so cold-recycling and stabilized-soil contractors can cover a typical road section between resupply runs. Curb weight 17250 kg, total weight at full load 25000 kg — 7750 kg binder material payload budget.
Spreading width adjustable from 400 mm at the narrow end to 2400 mm at the wide end. The 400 mm minimum fits narrow trench-bottom binder distribution and partial-lane treatment; the 2400 mm maximum covers most single-lane and roadbed treatment widths in one pass without secondary equipment.
Spreading density 5 to 30 kg/m² with ±5 percent precision. Density range covers cement dosing for cold-recycling pavement (typically 3-6 percent cement by mass of recycled material) at the upper end and light-binder roadbed treatment at the lower end. ±5 percent precision is the working tolerance for spec-bound cold-recycling and stabilized-soil mix proportions.
Designed for distributing cement, lime, and fly ash among other powder binders. Three-material flexibility lets the same truck serve different roadbed and pavement treatment recipes — cement for cold-recycling pavement, lime for soil stabilization at high-plasticity sites, fly ash for cementitious roadbed treatment with secondary supplemental binder.
Specified for cement spraying on highway cold-regeneration construction projects and for adhesive and stabilized-soil treatment of roadbed. Cold-recycling is a major asphalt-pavement maintenance process recycling existing pavement in place with new cement binder — this spreader is the binder-distribution unit upstream of the cold recycler.
| Parameter | Unit | Value |
|---|---|---|
| Filler silo capacity | m³ | 16 |
| Spreading width | mm | 400 - 2400 |
| Spreading density | kg/m² | 5 - 30 |
| Spreading precision | % | ±5 |
| Minimum working speed | km/h | 2.5 |
| Overall dimensions | mm | 9550×2550×3350 |
| Fuel tank | L | 400 |
| Curb weight | kg | 17250 |
| Total weight | kg | 25000 |
