14,300 kg single-cylinder hydraulic cone crusher. 215 mm max feedstock, 8–44 mm discharge opening adjustment, 90–384 t/h productivity depending on CSS and feed. 250 kW main motor drives the horizontal shaft at 1,490 ±5 rpm via belt drive. Overall dimensions 2,255 × 2,100 × 3,000 mm. Single-cylinder hydraulic design uses one main cylinder for CSS adjustment and tramp-metal release — protects the crushing chamber on contaminated feeds. Sized for secondary or tertiary stage downstream of a primary jaw on hard-rock aggregate lines (granite, basalt), mining feed prep, water-engineering aggregate, metallurgy, and building materials.

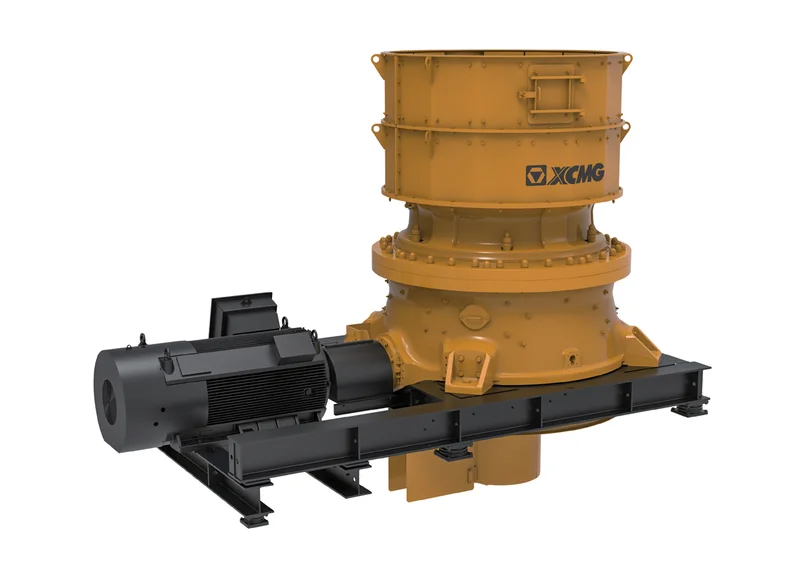

XGY1100D is a 14,300 kg single-cylinder hydraulic cone crusher. Max feedstock size is 215 mm. Discharge opening adjusts between 8 and 44 mm, giving 90–384 t/h productivity depending on the CSS setting and feed gradation. The 250 kW motor drives the horizontal shaft at 1,490 ±5 rpm via belt drive.
This is a second-stage or third-stage crusher — placed downstream of a primary jaw in a multi-stage aggregate line, it handles harder rock (granite, basalt) and abrasive natural stones where impact-box crushers would wear out too fast. Single-cylinder hydraulic design uses one main hydraulic cylinder to adjust the CSS and to release the cavity if tramp metal passes through, protecting the crushing chamber and reducing forced downtime on contaminated feeds.
Overall dimensions are 2,255 × 2,100 × 3,000 mm — compact for its tonnage class. Application fit covers mining, water-engineering aggregate supply, metallurgy plant feed prep, and building-materials industry, particularly where the secondary or tertiary stage has to push hard-rock product down from primary-jaw discharge to 8–44 mm aggregate suitable for road base, concrete aggregate, or mineral processing feed.
