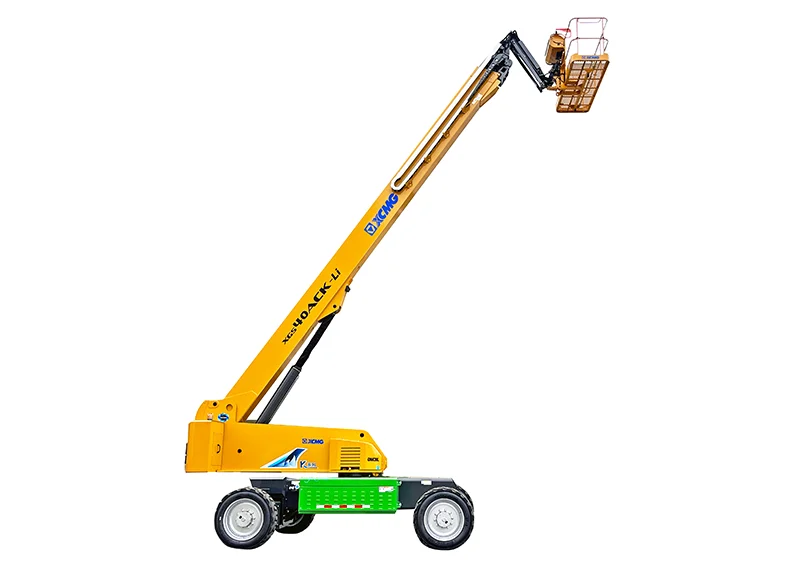

XCMG XGS40ACK-Li Electric Telescopic Boom Lift

38.2 m maximum platform height, 40.2 m maximum working height, 22.1 m maximum working range. Telescopic boom luffing range -6.5 to +75 degrees plus 1.42 m flying jib (-60 to +70 degrees). 360-degree turntable rotation, 160-degree platform rotation. Sized for high-rise building exteriors, large industrial roof structures, stadium and arena interiors, and energy-sector tower work at heights beyond standard 30 m boom lifts.

300 kg lift capacity rated unlimited across the full envelope plus 460 kg rated within the limited inner-reach zone. The 460 kg tier carries a 3-person crew plus tools and small fixtures when staying inside the inner zone — useful for fit-out, signage, and mechanical pre-assembly tasks at height.

3800 mm wheelbase with extendable axles — chassis transports at 2490 mm width, axles extend to 3800 mm working width for outrigger-equivalent stability at maximum boom reach. Larger stability footprint than the fixed-axle 32-34 m siblings, supporting the longer boom envelope at full extension.

Lithium-ion battery powerpack — longer service life and faster recharge cycle versus lead-acid alternatives, no on-shift fluid topping. Zero emission and low noise — usable indoors in finished interiors and emission-restricted facilities without ventilation accommodations.

Boom sections, platform components, hydraulic valves, and electrical control elements share core part numbers across the XGS-ACK lineup (XGS18ACK through XGS45ACK-Li). Lower inventory carrying cost for rental fleet operators running mixed-height XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
