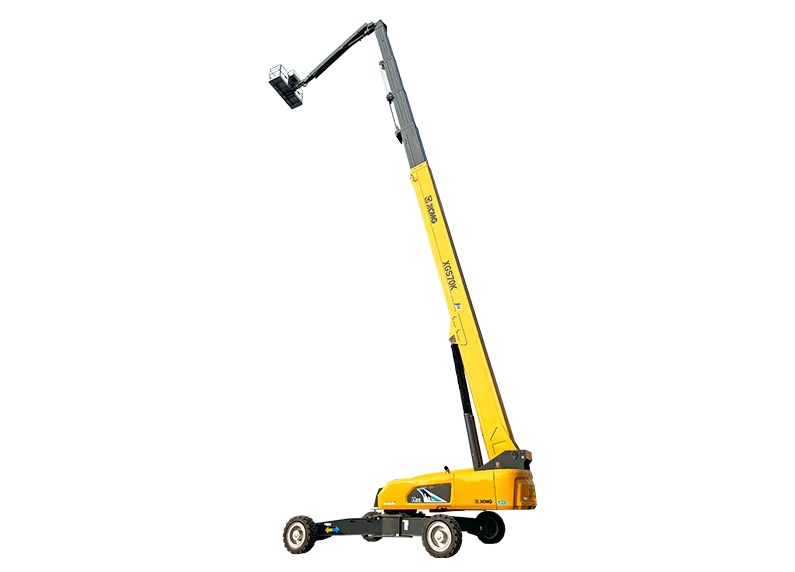

XCMG XGS70K Telescopic Boom Lift

69.6 m max working height, 67.6 m max platform height, 32.5 m max horizontal working range. Largest of the XCMG metric telescopic boom lifts — 11 m taller than the XGS58K (58.6 m). Equivalent to the ANSI-certified XGS220J-ANSI (228 ft 4 in / ≈69.6 m). Telescopic boom luffing 0° to +79.5°. Sized for high-rise facade and high-bay industrial maintenance.

Three-mode platform capacity: 230 kg unlimited (full reach envelope), 300 kg limited, 460 kg limited (heavier crew + tooling at restricted reach). Two or three occupants depending on configuration. ±160° platform rotation, 360° continuous turntable rotation. Working slope tolerance X-3° / Y-3°.

Two-stage extending flying jib: 5,420 mm retracted (with axle), 12,420 mm extended (with axle out) — 130 percent more jib length when extended. Luffing -61° to +70°. Lets one machine cover both compact transport configuration and maximum reach envelope for projects requiring 32+ m horizontal access.

Chassis axles retract to 2,490 mm overall width for road transport and extend to 5,500 mm for working footprint stability — widest extended footprint in the XCMG telescopic boom lift lineup, supporting the 32.5 m horizontal reach envelope. Wheelbase 5,890 mm retracted / 5,080 mm extended.

30% (16.7°) max gradeability — lower than smaller K-series siblings (40-45%). Trade-off for the flagship reach envelope: high center of gravity at 67.6 m platform height limits maximum slope rating. 4.5 km/h max drive speed stowed, 0.5 km/h crawl when boom is up or extended. 300 mm ground clearance.
