50 m working height engine-powered telescopic boom lift. 48 m max platform height, 25.2 m max horizontal working range, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom 0° to +80°, flying jib (3,970 mm retracted / 5,970 mm extended) -45° to +75°. 24.4 t dead weight, 17.46 m stowed length, axle-extending chassis (2,490 / 5,030 mm width). 45% (24°) gradeability, 400 mm ground clearance. Sits between XGS45K (45 m class) and XGS58K (58.6 m class) in the XCMG lineup.

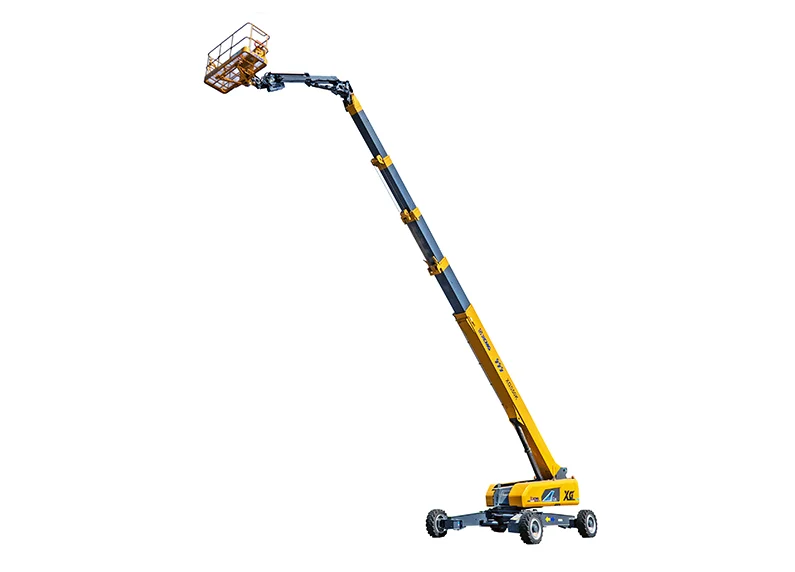

The XCMG XGS50K is a 50 m working height engine-powered telescopic boom lift built for high-reach exterior facade work, steel structure construction, port maintenance, and shipyard hull work in the 50 m class.
Max platform height 48 m, max horizontal working range 25.2 m, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom luffs 0° to +80°, flying jib (3,970 mm retracted / 5,970 mm extended) luffs -45° to +75°. 360° continuous turntable rotation, ±160° platform rotation. 24.4 t dead weight, 17.46 m stowed length / 12.55 m transport length, 2,490 mm width retracted (5,030 mm with axles extended for working footprint stability). Drive speed 4.5 km/h stowed, 0.5 km/h boom up or extended. 45% (24°) max gradeability, 400 mm ground clearance. Sits below the 58.6 m XGS58K and above the 45 m XGS45K in the XCMG telescopic boom lift lineup — pick the 50 m class when 45 m falls short and the project doesn't justify the longer XGS58K transport length.
