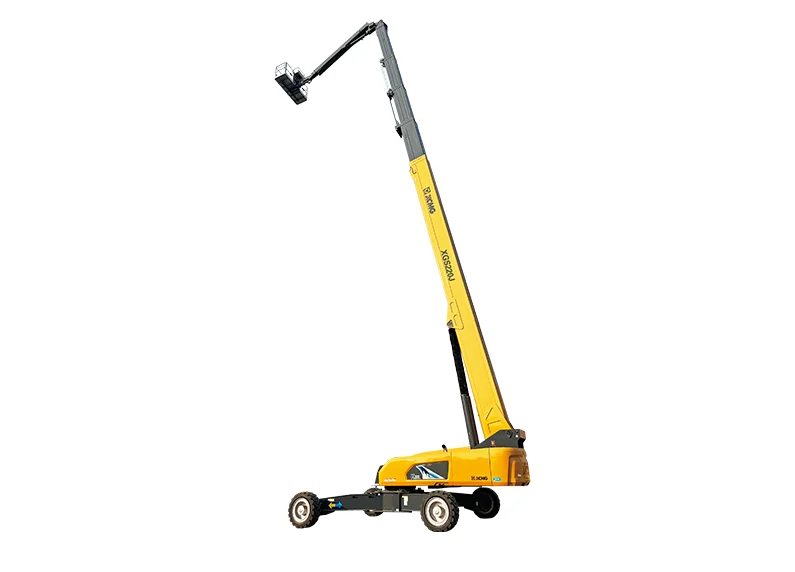

XCMG XGS220J-ANSI Telescopic Boom Lift

ANSI A92.20 standard certification (US-spec replacement for older A92.5 standards). Required for rental fleet operators and contractors working in the US, Canada, and other jurisdictions that follow ANSI standards for self-propelled boom-supported elevating work platforms. ANSI-certified configuration uses imperial-unit instrumentation and ANSI-compliant operator manual + safety markings.

228 ft 4 in (≈69.6 m) max working height, 221 ft 9 in (≈67.6 m) max platform height, 105 ft (≈32 m) max horizontal working range. Largest telescopic boom lift in the XCMG ANSI series — 44 percent more working height than the next-down 158J-ANSI (164 ft 1 in / ≈50 m). Sized for high-rise facade work and high-bay industrial maintenance where ANSI compliance is binding.

661 lbs unrestricted platform capacity for full reach envelope, 1,014 lbs restricted capacity mode for heavier crew + tooling at limited reach. Boom luffing 0° to 79.5°. 360° continuous turntable rotation. Configuration matches typical 2-3 occupant ANSI MEWP work patterns.

78,044 lbs (≈35.4 t) total weight. 19 ft 3 in (≈5.87 m) wheelbase with axle retracted. 2.8 mph max travel speed. 35% max gradeability — lower than the metric K-series at 40-45% reflecting the larger frame and higher center of gravity at full reach.

Shared powertrain and boom architecture with the XGS70K metric variant (69.6 m working height). Spares pool overlap reduces inventory carrying cost for fleet operators running mixed ANSI and metric XCMG aerial work platforms. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
