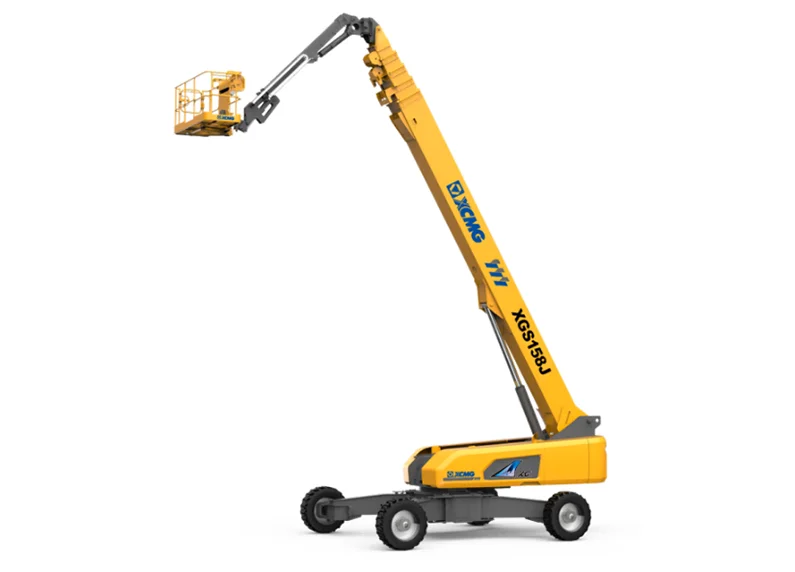

XCMG XGS158J-ANSI Telescopic Boom Lift

ANSI A92.20 standard certification (US-spec replacement for older A92.5 standards). Required for rental fleet operators and contractors working in the US, Canada, and other jurisdictions that follow ANSI standards for self-propelled boom-supported elevating work platforms. ANSI configuration uses imperial-unit instrumentation and ANSI-compliant operator manual + safety markings.

164 ft 1 in (≈50 m) max working height, 157 ft 5 in (≈48 m) max platform height, 82 ft 8 in (≈25.2 m) max horizontal working range. Sits between the 125J-ANSI (131 ft 10 in / ≈40 m) and 220J-ANSI (228 ft 4 in / ≈69.6 m). Sized for mid-rise facade work and industrial maintenance where 130 ft falls short but 228 ft over-specs.

661 lbs unrestricted platform capacity for full reach envelope, 1,014 lbs restricted capacity mode for heavier crew + tooling at limited reach. Boom luffing 0° to 80°. 360° continuous turntable rotation. Configuration matches typical 2-3 occupant ANSI MEWP work patterns.

45% max gradeability vs 35% on the larger 220J-ANSI — lower frame and lower center of gravity in the 50 m class admits higher gradeability rating. 2.8 mph max travel speed. 17 ft 2 in wheelbase. 53,881 lbs total weight. Better gradeability suits sloped construction sites and infrastructure work with site-grade transit.

Shared powertrain and boom architecture with the XGS50K metric variant (50 m working height). Spares pool overlap reduces inventory carrying cost for fleet operators running mixed ANSI and metric XCMG aerial work platforms. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
