Self-propelled mast lift in mast-plus-articulated-arm configuration. 12.65 m maximum working height, 10.65 m platform height, 200 kg unlimited platform capacity. The mast handles vertical lift; the articulated arm extends horizontally for up-and-over reach past racking, ductwork, and partitions. Stowed dimensions 3.76 m length, 1.2 m width, 2 m height. 4,890 kg dead weight. 48 V / 265 Ah battery electric drive — higher voltage than the XGR08J and XGR10J siblings to support the larger machine and articulated boom. Gradeability 25 percent.

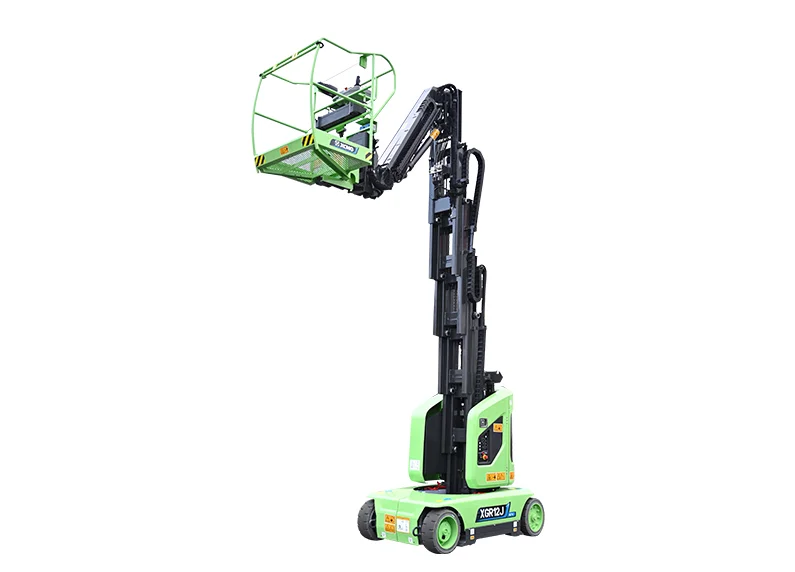

The XGR12J is a self-propelled vertical mast lift with a mast-plus-articulated-arm configuration. Maximum working height is 12.65 m, platform height 10.65 m, with 200 kg unlimited lift capacity. The mast handles vertical lift and the articulated arm extends horizontally, giving up-and-over reach to clear ductwork, racking, or partitions that a pure vertical mast cannot pass.
Stowed dimensions are 3.76 m length, 1.2 m width, 2 m height. Dead weight is 4,890 kg. Drive is electric on a 48 V / 265 Ah battery pack — higher voltage than the XGR08J and XGR10J (both 24 V) to support the larger machine and the articulated boom function. Gradeability is 25 percent (14 degrees). Turning radius is 1.7 / 2.75 m front and 0.82 / 2.02 m rear.
Sized for indoor and partly-obstructed work where reach to 10.65 m platform height plus horizontal jib is the binding constraint: warehouse high-bay racking past obstructions, factory overhead service around fixed equipment, atrium and high-ceiling fit-out where vertical-only masts cannot reach the work face.
