Self-propelled vertical mast lift with articulated jib, built to ANSI standards. 26'11'' (about 8.2 m) maximum working height, 20'4'' (about 6.2 m) platform height. 441 lb (about 200 kg) lift capacity — 26 percent more than the jib-less XGR20AC-ANSI sibling. The jib gives up-and-over reach to clear racking, ductwork, or partitions. Stowed dimensions 7'4'' length, 3'3'' width, 6'7'' height. 4,960 lb (about 2,250 kg) dead weight. 24 V / 265 Ah battery — larger pack than the XGR20AC-ANSI's 150 Ah for longer shifts. Gradeability 25 percent. Turning radius 4'3''.

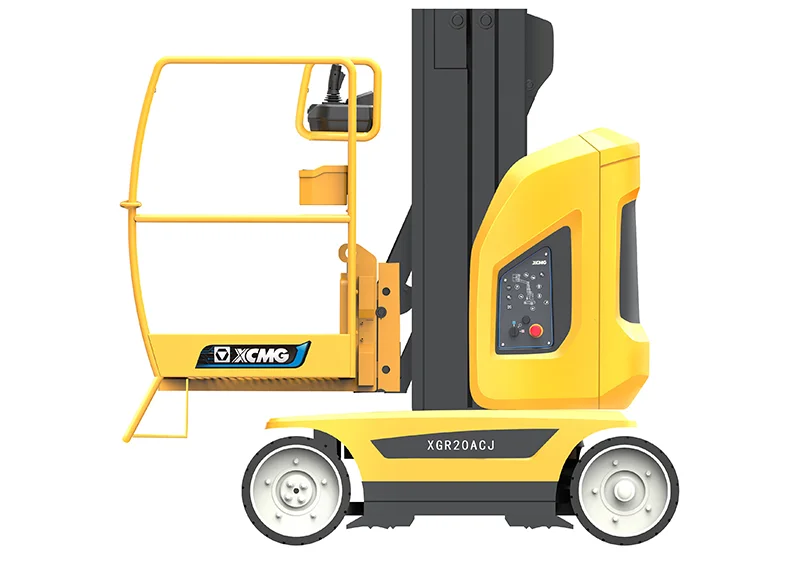

The XGR20ACJ-ANSI is a self-propelled vertical mast lift with an articulated jib, ANSI-compliant for North American jurisdictions. Maximum working height is 26'11" (about 8.2 m), platform height 20'4" (about 6.2 m), with a 441 lb (about 200 kg) lift capacity — 26 percent more capacity than the jib-less XGR20AC-ANSI (350 lb). The jib adds up-and-over reach to clear racking, ductwork, or partitions a pure vertical mast cannot pass.
Stowed dimensions are 7'4" length, 3'3" width, 6'7" height. Dead weight is 4,960 lb (about 2,250 kg). Drive is electric on a 24 V / 265 Ah battery pack — the larger 265 Ah pack supports longer shifts than the 150 Ah pack on the XGR20AC-ANSI. Gradeability is 25 percent. Turning radius is 4'3" — wider than the XGR20AC-ANSI footprint as the trade for jib reach and higher capacity.
Sized for ANSI-jurisdiction work where similar platform height to the XGR20AC-ANSI is needed but the project requires horizontal reach or 441 lb capacity at platform.
