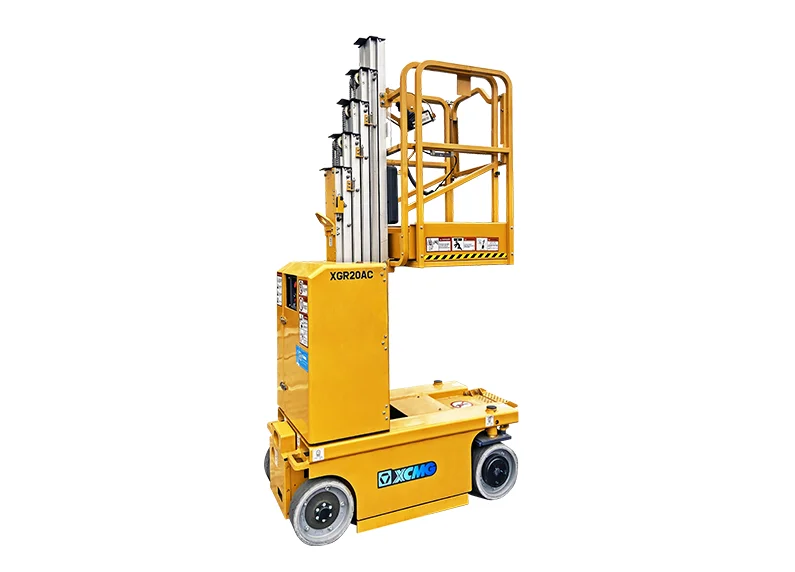

XCMG XGR20AC-ANSI Mast Lift

Built to ANSI standards (per the ANSI suffix in the model name). For U.S. and Canadian rental yards and contractors, ANSI certification is the baseline regulatory requirement at most jobsites — using a non-ANSI imported MEWP creates paperwork and acceptance issues at site entry. The XGR20AC-ANSI removes that friction for North American projects.

Turning radius is 0 ft inside / 5 ft outside. Zero inside radius means the inner wheels pivot in place during the turn, enabling in-place rotation for tight aisle and rack work where the outer wheels swing around a fixed inner pivot. Suited to retail aisles, warehouse rack lanes, and office layouts where the turn radius determines whether the machine can reach the work face.

2,800 lb (about 1,270 kg) dead weight — the lightest unit among the three ANSI XGR siblings (XGR20ACJ-ANSI: 4,960 lb; XGR26ACJ-ANSI: 6,724 lb). Lighter unit eases floor-loading limits in mezzanines, second-floor retail, and older buildings, and reduces transport tare on rental delivery vehicles.

26'2'' working height / 19'8'' platform / 350 lb capacity is the entry point in the XGR ANSI mast lift family — sized for typical 6 m indoor reach work without jib (warehouse rack service, retail fit-out, electrical and HVAC overhead, facility maintenance). Family steps up to the XGR20ACJ-ANSI (same height with jib, 441 lb) or XGR26ACJ-ANSI (33'2'' with jib) for jobs needing horizontal reach or higher platform.

Drive wheels, controller, battery components, and chassis sub-assemblies share core part numbers with other XCMG XGR mast lifts (metric and ANSI) — lower inventory carrying cost for fleet operators running mixed-spec XGR rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
