Self-propelled vertical mast lift with articulated jib, built to ANSI standards. 33'2'' (about 10.1 m) maximum working height, 26'7'' (about 8.1 m) platform height. 441 lb (about 200 kg) lift capacity. The jib gives up-and-over reach for warehouse high-bay racking, atrium fit-out, and overhead service around obstructions. Stowed dimensions 9'10'' length, 3'3'' width, 6'7'' height — same width and height as the XGR20ACJ-ANSI sibling with extra length for the larger mast assembly. 6,724 lb (about 3,050 kg) dead weight. 24 V / 265 Ah battery electric. Gradeability 25 percent. Turning radius 4'3''.

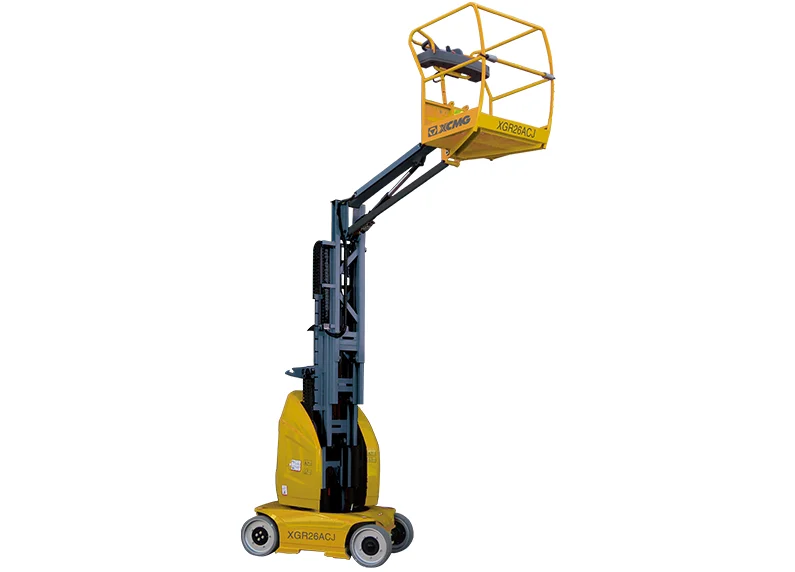

The XGR26ACJ-ANSI is a self-propelled vertical mast lift with articulated jib, ANSI-compliant for North American jurisdictions. Maximum working height is 33'2" (about 10.1 m), platform height 26'7" (about 8.1 m), with a 441 lb (about 200 kg) lift capacity. The jib adds horizontal reach for up-and-over work around racking, ductwork, or partitions.
Stowed dimensions are 9'10" length, 3'3" width, 6'7" height — same width and height as the XGR20ACJ-ANSI sibling, with extra length for the larger mast assembly. Dead weight is 6,724 lb (about 3,050 kg). Drive is electric on a 24 V / 265 Ah battery pack. Gradeability is 25 percent. Turning radius is 4'3".
Sized for ANSI-jurisdiction indoor work where reach to 8.1 m platform height plus jib is the binding constraint: warehouse high-bay racking past obstructions, retail and atrium fit-out, factory overhead service. Top of the three-unit XGR ANSI mast lift line — step down to the XGR20ACJ-ANSI (20'4" platform) when the height is more than the project needs, or to the XGR20AC-ANSI (no jib) when horizontal reach is not required.
