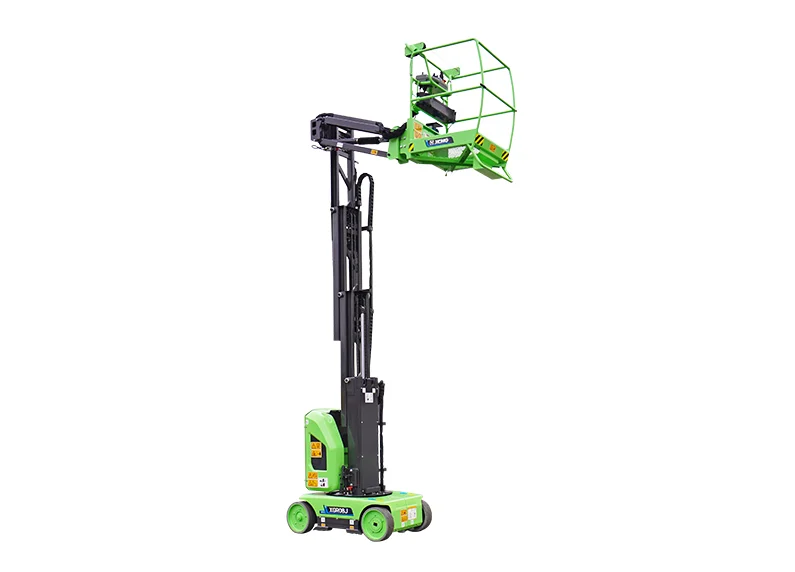

Self-propelled vertical mast lift in the 8 m class. 8.2 m maximum working height, 6.2 m platform height. 200 kg lift capacity unlimited across the platform. Compact stowed footprint — 2.23 m length, 0.99 m width, 2 m height — fits through standard single-leaf doorways for indoor relocation. 2,250 kg dead weight. 24 V / 265 Ah battery electric drive. Gradeability 25 percent. Turning radius 1.3 / 2.1 m front and 0.7 / 1.7 m rear. Lubrication-free mast design reduces planned maintenance intervals.
The XGR08J is a self-propelled vertical mast lift in the 8-meter class. Maximum working height is 8.2 m and platform height is 6.2 m, with a 200 kg lift capacity that is unlimited across the platform area. The stowed footprint is compact: 2.23 m length, 0.99 m width, 2 m height — fits through standard single-leaf doorways and into elevators for indoor relocation between floors. Dead weight is 2,250 kg.
Drive is electric on a 24 V / 265 Ah battery pack. Gradeability is 25 percent (14 degrees). Turning radius is 1.3 / 2.1 m at the front and 0.7 / 1.7 m at the rear, which gives in-place rotation in tight indoor aisles. The XGR08J uses a lubrication-free mast design to reduce planned maintenance intervals.

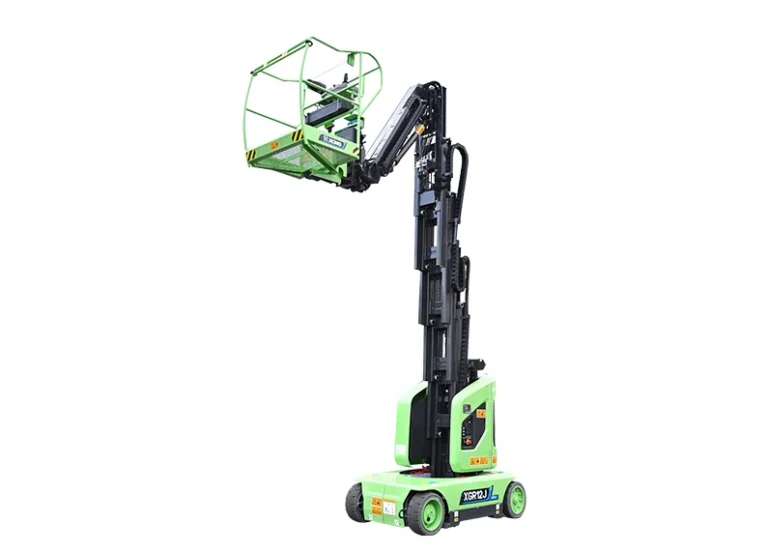

Sized for indoor projects where reach to 6.2 m platform height covers the work: warehouse light fixture and rack service, retail and hospitality fit-out, electrical and HVAC overhead trades, facility maintenance. Step up to the XGR10J (10.1 m) or XGR12J (12.65 m) when the same project also needs higher reach.
