19.55-ton vertical-shaft impact crusher (VSI) designed for fine crushing and aggregate shaping. Crushing-mode max feed 45 mm with 340–370 t/h throughput; shaping-mode max feed 55 mm with 410–580 t/h throughput. 500 kW motor drives the spindle at 1,000–1,300 rpm — spindle speed selectable to balance crushing vs shaping. Working temperature range −20 to +40 °C. Overall dimensions 5,500 × 2,740 × 4,025 mm. Sized for tertiary or quaternary stage in multi-stage aggregate lines supplying high-speed rail bedding, expressway sub-base, nuclear-power-station concrete aggregate, and bridge construction.

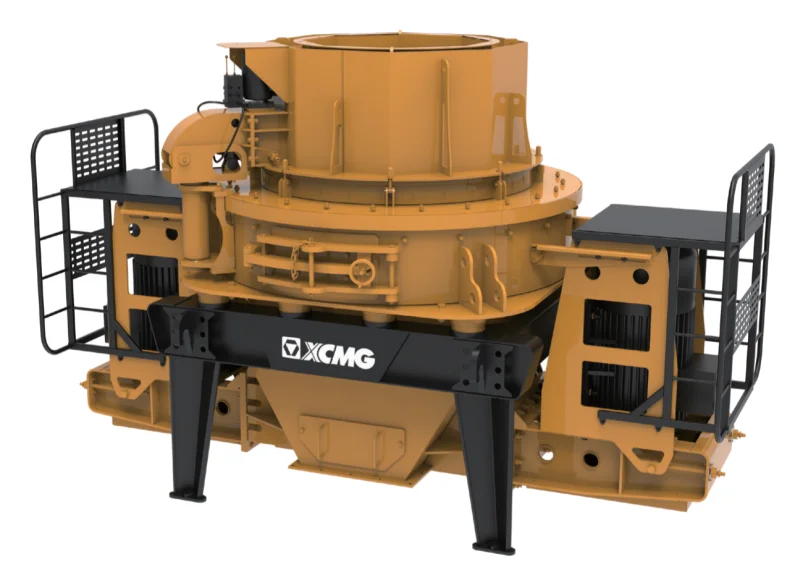

XGL1050 is a 19.55-ton vertical-shaft impact crusher (VSI) designed for fine crushing and aggregate shaping. Max feedstock size is 45 mm in crushing mode and 55 mm in shaping mode. Throughput is 340–370 t/h on crushing duty and 410–580 t/h on shaping duty — the unit is run in two distinct duty cycles depending on whether the project is feeding the VSI fresh stone for size reduction or recirculating coarse aggregate for shape correction.
The 500 kW motor drives the spindle at 1,000–1,300 rpm, with spindle speed selectable to balance the crushing-vs-shaping trade-off. Working environment range is −20 to +40 °C, covering north-China winter sites and tropical operations without supplemental heating or cooling.
Overall dimensions are 5,500 × 2,740 × 4,025 mm. Sized for tertiary or quaternary stage in aggregate lines feeding high-speed rail bedding, expressway sub-base, nuclear-power-station concrete aggregate, and bridge-construction projects — duty positions where the output gradation has to hit tight shape and fine-aggregate ratio targets rather than simple sub-base specs. Pairs with primary jaw and secondary cone or impact upstream in a multi-stage line.
