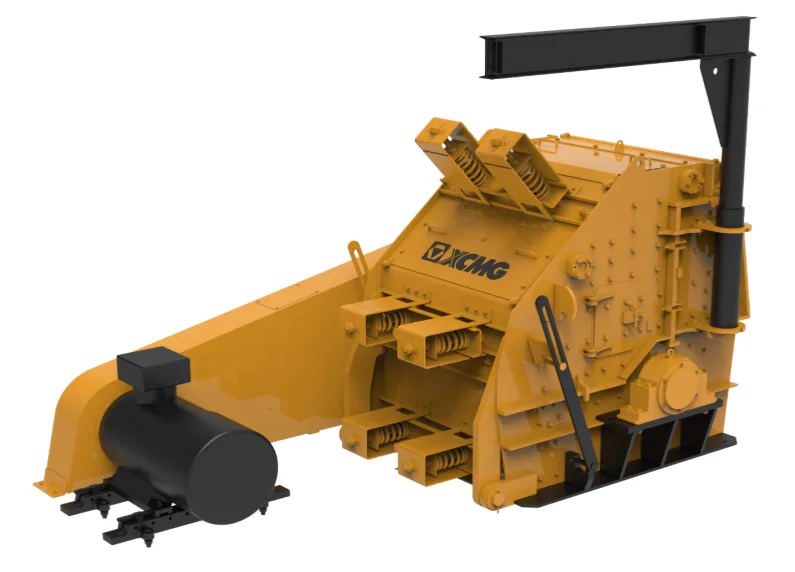

XCMG XGF1214 Impact Crusher

1,450 × 800 mm feed inlet with 300 mm max feedstock size. Sized for secondary or tertiary stage after a primary jaw — the throat takes the jaw discharge directly without an additional reclaim screen. Compact 4,500 × 2,410 × 2,350 mm envelope keeps the secondary/tertiary plant footprint manageable in modular line layouts.

Material hardness limit ≤150 MPa covers limestone, sandstone, and recycled construction-waste streams including concrete and concrete-with-rebar feeds where reinforcing steel rules out cone crushers. Above 150 MPa (granite, basalt) the application sits outside manufacturer-stated range — for hard-rock crushing the cone-crusher siblings (XGY1100D) are the right pick.

Motor + 10-narrow-V-belt drive with 185–250 kW motor (selectable based on duty and supply). Multi-belt configuration spreads torque load across the drive bank — single belt failure does not stop production, the unit runs through on reduced output until scheduled changeout, which raises uptime on continuous-production aggregate lines.

Discharge opening range 0–40 mm with 70–85 percent of product passing at the set opening. Tuned for shaped aggregate output — road base, sub-base, and recycled-concrete fines — rather than coarse scalped product. 145–350 t/h productivity range fits small-to-mid aggregate lines and recycling plants targeting consistent shaped output rather than maximum coarse throughput.
