ANSI-spec engine-powered articulating boom lift with 87 ft 3 in (26.6 m) maximum working height — XCMG's largest ANSI-spec articulating boom lift. 80 ft 8 in (24.6 m) platform height, 64 ft (19.5 m) maximum working range. Load capacity 564 lbs restricted / 331 lbs unrestricted. 36,376 lbs total weight, 9 ft 10 in wheelbase. Travel speed 3.1 mph. 45 percent maximum gradeability. 360-degree continuous turntable rotation. Specification published in imperial units for ANSI A92.20 markets.

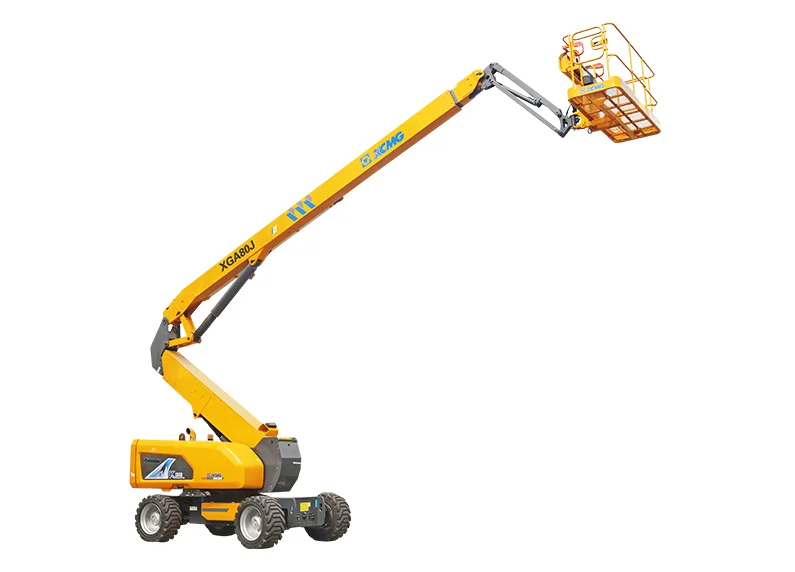

The XGA80J-ANSI is XCMG's largest engine-powered articulating boom lift in the ANSI-spec line — 87 ft 3 in (26.6 m) working height, 80 ft 8 in (24.6 m) platform height, and 64 ft (19.5 m) maximum working range. Maximum load capacity is 564 lbs (256 kg) restricted and 331 lbs (150 kg) unrestricted. The first boom luffs from -1 to +70 degrees and the second boom from -35 to +68 degrees, giving up-and-over reach plus below-grade access. Turntable rotation is 360 degrees continuous.
Total weight in travel is 36,376 lbs (16,500 kg). Wheel base is 9 ft 10 in (3,000 mm). Travel speed is 3.1 mph stowed. Maximum gradeability is 45 percent. Specification is published in imperial units for the North American ANSI A92.20 market and equivalent metric markets — same machine envelope as the XGA26K-AS sibling for projects spec'd in metric units.
Suited to multi-story commercial fit-out, refinery and petrochemical maintenance, telecoms and tower work, and rental fleets serving North American job sites that require ANSI A92.20-compliant aerial work platforms.
