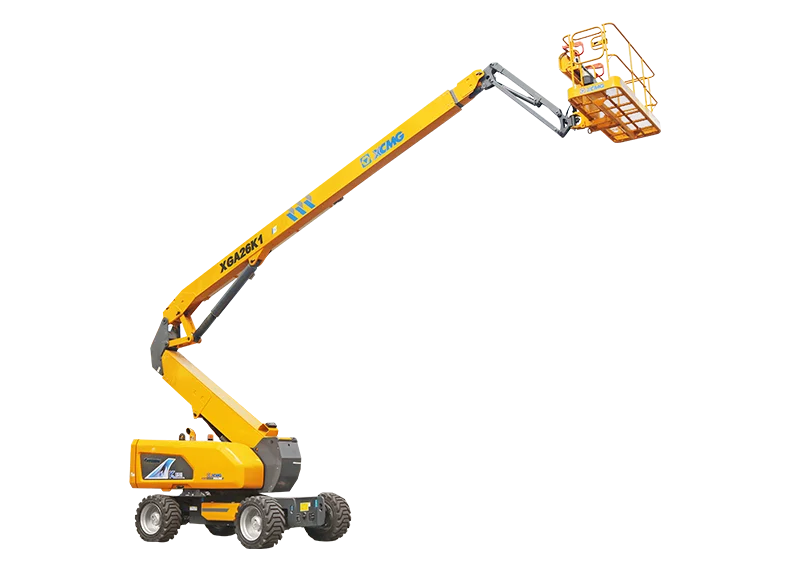

XCMG XGA26K1 Articulating Boom Lift

26.6 m maximum working height with 24.6 m platform height, 19.5 m maximum working range, and 8.7 m up-and-over clearance. The 8.7 m up-and-over figure quantifies the negative-luff envelope — the boom can clear obstacles 8.7 m wide before reaching the work area on the far side. Sized for refinery, petrochemical, multi-story fit-out, and large-span steel structure erection.

4WD with 45 percent maximum gradeability. XCMG specifies the XGA26K1 climbing speed as industry-leading. 5 km/h travel speed stowed, 0.6 km/h with boom raised for fine positioning. 380 mm ground clearance for transit over rough sites. 4WD outperforms 2WD comparable boom lifts on muddy, gravel, and graded surfaces.

1,850 mm flying jib with -65 to +70 degree luffing range — extends platform position beyond the second boom for fine work around obstructions, into corners, and over edges. 160-degree platform rotation supports operator orientation when the jib places the platform off-axis from the boom.

Power self-matching energy-saving system — XCMG specifies it as maximizing fuel economy across working conditions. For rental fleets running daily shift hours, the reduction in fuel use translates to per-day diesel cost saving plus reduced refuel-stop downtime.

Stowed dimensions 11,760 x 2,490 x 2,950 mm. Transport dimensions 9,400 x 2,490 x 3,000 mm — transit fits standard low-bed trailers without escort overhead. 2,255 mm turntable tailswing for clearance behind the chassis when slewing. Inside/outside turning radius 2,355/4,625 mm — fits site access roads with mid-tight bends.
