Engine-powered articulating boom lift with 48.7 m maximum working height — XCMG's largest XGA-K-series articulating boom lift. 46.7 m platform height, 24.5 m working range. Maximum load 460 kg restricted / 300 kg unrestricted. 27,380 kg total weight, 5,220 mm wheelbase (axle retracted) / 4,590 mm extended. Travel speed 4.5 km/h stowed, 40 percent (22-degree) maximum gradeability. 360-degree continuous turntable rotation. Power self-matching system reduces fuel use over 30 percent versus traditional hydraulic boom lifts.

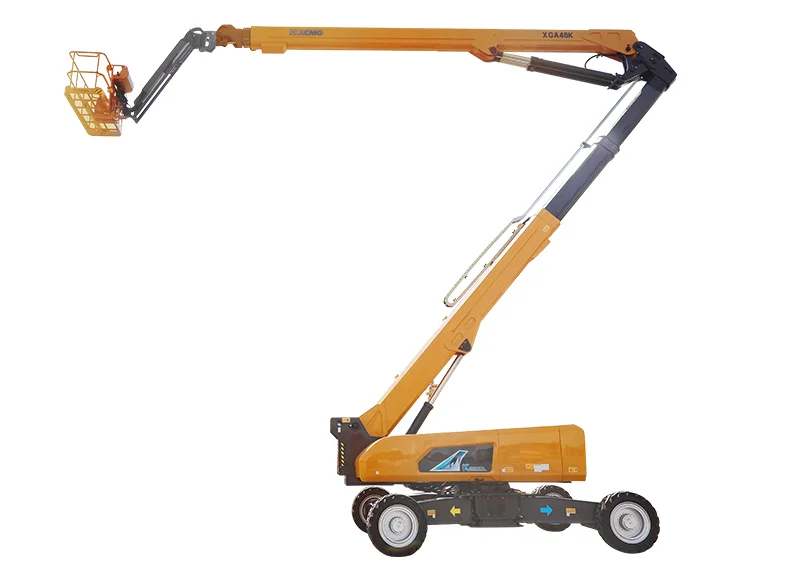

The XGA48K is XCMG's largest engine-powered articulating boom lift at 48.7 m working height — 46.7 m platform height and 24.5 m maximum working range. Maximum load capacity is 460 kg in restricted mode and 300 kg unrestricted. The first boom luffs from -4 degrees to +68 degrees and the second boom from -64 degrees to +75 degrees, giving the operator up-and-over reach to clear obstacles and position the platform on the far side of structures. The turntable rotates 360 degrees continuously.
Total weight in travel is 27,380 kg. Wheel base is 5,220 mm with axle retracted, 4,590 mm extended. Travel speed is 4.5 km/h stowed and 0.5 km/h with the boom raised or extended. Maximum gradeability is 40 percent (22 degrees). XCMG specifies a power self-matching energy-saving system that reduces fuel consumption by more than 30 percent versus traditional hydraulic systems across working conditions. Suited to large industrial sites, refineries, shipyards, stadiums, and infrastructure projects where the 24.5 m horizontal reach replaces scaffolding setup time.
