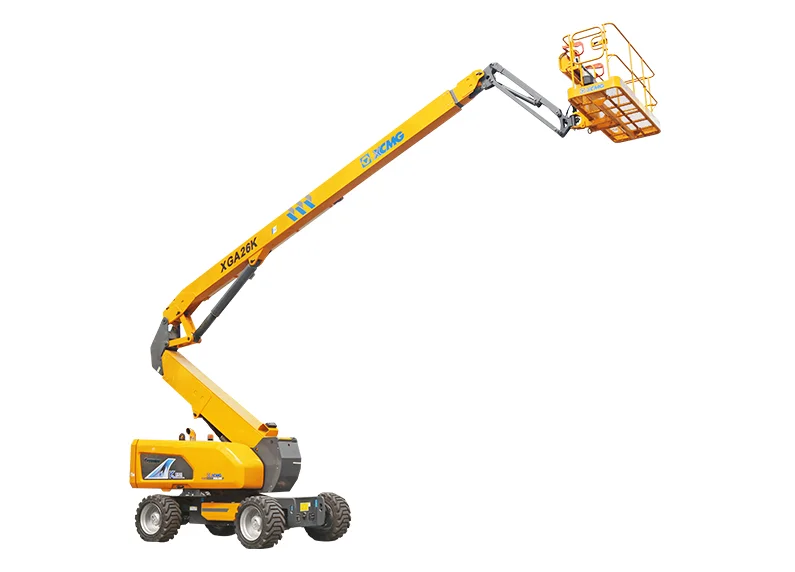

XCMG XGA26K-AS Articulating Boom Lift

26.6 m maximum working height with 24.6 m platform height — the largest engine-powered articulating boom lift in XCMG's XGA-K-AS line. Sized for the upper end of mid-rise access work: multi-story commercial fit-out, refinery and petrochemical plant maintenance, telecoms tower work, and large-span steel structure erection. Equivalent platform reach to the legacy XGA26K and XGA26K1 on the updated AS chassis platform.

19.5 m maximum working range — over 2.2 times the 12.08 m reach of the XGA20K-AS, in just a 6 m taller working height. Disproportionate increase in horizontal reach versus vertical lift, sized for projects where structural span is the binding constraint — wide refineries, large industrial buildings, and over-roof access on long spans.

Second boom luffing range -35 to +68 degrees — 24 degrees more negative travel than the 0-degree minimum on the XGA20K-AS second boom. Below-grade access for retaining walls, embankments, dock-side work, and below-deck maintenance; up-and-over reach to clear roof edges and equipment obstructions without repositioning the chassis.

360-degree continuous turntable rotation — unrestricted slew for work patterns that move the platform around a central feature (tank, equipment cluster, column) without rewinding the slew between positions. Higher productivity on projects where the boom needs to cover multiple work positions from a single chassis location.

AS-series updated chassis platform shared with the XGA12K-AS, XGA16K-AS, and XGA20K-AS — parts pool overlap for fleet operators running multiple sizes. Differs from the legacy XGA26K and XGA26K1 platforms (same working height, different chassis generation). Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
