51'10" maximum working height self-propelled scissor lift built to ANSI standards. 45'3" platform height, 772 lb (350 kg) lift capacity — the tallest unit in the XCMG ANSI-certified scissor lift family. AC drive electric. 8,113 lb total weight, 7'4" wheelbase, 8'8" outside turning radius. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. ANSI A92.20 certification fits the unit for US and Canadian rental fleets, general contractors, and OSHA-aligned facility maintenance operations. Suited for warehouse high-bay, factory installation, and rental fleet work in ANSI/CSA markets.

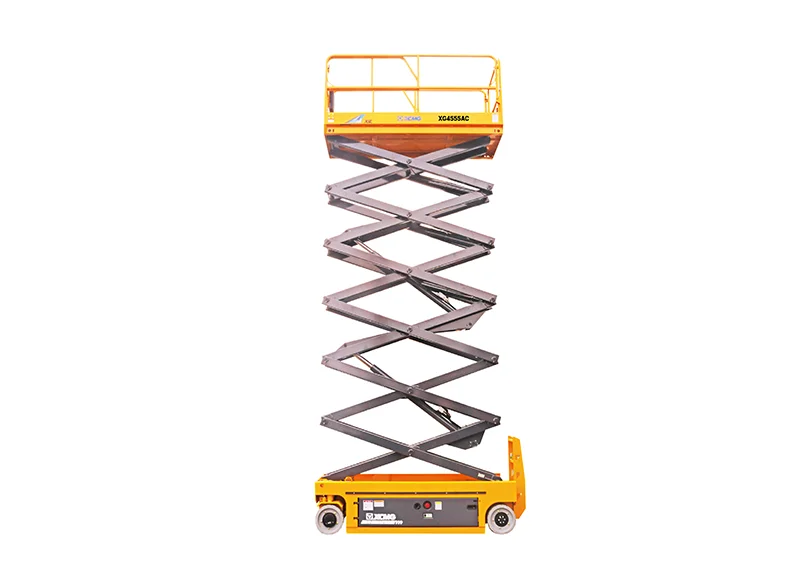

The XCMG XG4555AC-ANSI is a self-propelled scissor lift built to ANSI standards with 51'10" maximum working height (45'3" platform height) and 772 lb (350 kg) lift capacity — the tallest unit in the XCMG ANSI-certified scissor lift family, sized for the North American rental and contractor market.
The XG4555AC-ANSI sits at the top of the ANSI lineup, paired against the shorter siblings XG4047AC-ANSI (38'8" platform / 705 lb / 6,944 lb), XG3246AC-ANSI (32'4" / 705 lb), and XG2646AC-ANSI (26'3" / 992 lb). 8,113 lb (3,679 kg) total weight reflects the taller scissor stack for the 45-foot platform. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. 7'4" wheelbase, 8'8" outside turning radius (0 inside for inner-wheel zero turn). 3 in minimum ground clearance. ANSI A92.20 certification opens the unit to US/Canada rental fleets, general contractors, and facility maintenance operations subject to OSHA-aligned MEWP standards. Suited for warehouse high-bay, factory installation, and rental fleet work in ANSI/CSA markets.
