10 m XCMG Scissor Lift — Lighter-Weight AS Series
10 m maximum working height self-propelled scissor lift. 8 m platform height, 230 kg lift capacity. AC drive electric. 2,260 kg total weight — 420 kg lighter than the high-capacity sibling XG1012AC-AS (2,680 kg). Same 10-meter envelope, half the lift capacity. 1,877 mm wheelbase shared across the AS series, 2.3 m outside turning radius. 4 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. Suited for electrical contracting, light HVAC service, painting and finishing, facility maintenance, and crew-only access at height.

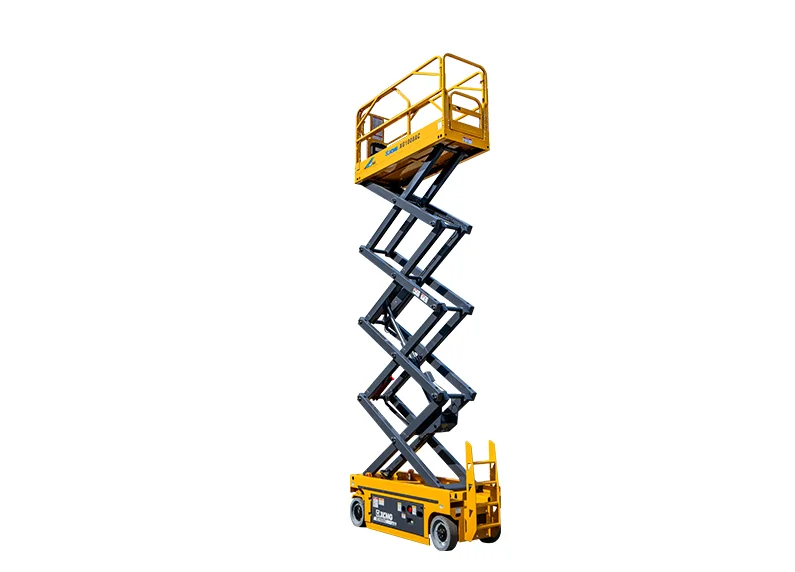

The XCMG XG1008AC-AS is a self-propelled scissor lift with 10 m maximum working height (8 m platform height) and 230 kg lift capacity — the lighter-weight 10-meter unit in the XCMG scissor lift lineup, sized for crew access work at height without heavy material loads.
The XG1008AC-AS pairs with the same-envelope sibling XG1012AC-AS (10 m / 450 kg / 2,680 kg) in the AS series. The 1008 trades capacity for 420 kg less deadweight (2,260 kg vs 2,680 kg) — easier on commercial floor loads, lower transport class, faster jobsite relocation for crews not lifting heavy materials. 4 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. 1,877 mm wheelbase shared across the AS series. 2.3 m outside turning radius. 100 mm minimum ground clearance. Suited for electrical contracting, light HVAC service, painting and finishing at height, facility maintenance in tall buildings, and rental fleet work where customers need 8-meter platform reach without heavy materials.
Five aspects of the XG1008AC-AS that position it as the lighter-weight 10-meter unit in the AS series: envelope, weight saving vs XG1012AC-AS, AC drive, AS chassis, and target work types.
10 m maximum working height and 8 m maximum platform height — same envelope as the high-capacity sibling XG1012AC-AS but with a lighter-build platform and lift structure. Sized for warehouse high-bay access, factory installation in tall halls, and other 8-meter platform work.
230 kg rated lift capacity — supports 2-person crew plus tools but not heavy materials. Suited for work types where the crew brings tools and consumables up to platform height but materials are not part of the lift load: electrical inspection and rough-in, light HVAC service, painting, drywall finishing, ceiling work.
2,260 kg total weight — 420 kg below the high-capacity 10-meter sibling XG1012AC-AS (2,680 kg). Easier on commercial floor loads, lower transport class, faster relocation between jobsites and work zones. Suited for fleet operators serving multi-site contractors who relocate equipment frequently.
AC drive electric motor with AS-series chassis (1,877 mm wheelbase, 2.3 m outside turning radius). Shared chassis components with the 10-meter XG1012AC-AS and 12-meter XG1212AC-AS reduce inventory carrying cost for AS-series fleet operators. 100 mm ground clearance for outdoor jobsite conditions.
Choose XG1008AC-AS when the project work is crew-and-tools at 10 meters without heavy materials — 420 kg weight saving over the XG1012AC-AS matters. Choose the high-capacity XG1012AC-AS when materials handling at platform height drives the requirement. Step up to XG1212AC-AS for taller envelope, or down to the 7-meter siblings for lower-rise work. Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 10 |
| Max. platform height | m | 8 |
| Max. driving speed | km/h | 4 (stowed) / 0.8 (raised) |
| Min. turning radius (outside) | m | 2.3 |
| Min. ground clearance | mm | 100 |
| Max. lift capacity | kg | 230 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1877 |
| Total weight | kg | 2260 |
