XCMG XG1212AC-AS Scissor Lift

11.85 m XCMG Scissor Lift — Tallest in the Metric Range

Share:
Ask AI:
NewAvailableYear 2026

11.85 m maximum working height self-propelled scissor lift — the tallest in the XCMG standard metric scissor lift lineup. 9.85 m platform height, 320 kg lift capacity. AC drive electric. 3,000 kg total weight, 1,877 mm wheelbase, 2.3 m outside turning radius. 4 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. 100 mm minimum ground clearance for outdoor jobsite conditions. Suited for high-bay warehouse maintenance, factory installation in tall halls, distribution center fit-out, and rental fleet operators with 10+ meter platform demand.

The XCMG XG1212AC-AS is a self-propelled scissor lift with 11.85 m maximum working height (9.85 m platform height) and 320 kg lift capacity — the tallest standard-meter scissor lift in the XCMG global lineup, sized for high-bay industrial work.

The XG1212AC-AS sits at the top of the AS-suffix series with AC drive — paired against the shorter siblings XG1012AC-AS (10 m / 450 kg) and XG1008AC-AS (10 m / 230 kg). 3,000 kg total weight reflects the taller scissor stack and reinforced structure for the 11.85-meter envelope. 4 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. 1,877 mm wheelbase, 2.3 m outside turning radius — wider than the entry-tier siblings but proportional to the working envelope. 100 mm minimum ground clearance — clears typical commercial floor irregularities and outdoor jobsite conditions. Suited for high-bay warehouse maintenance, factory installation in tall halls, distribution center fit-out, and rental fleet operators serving customers with 10+ meter platform requirements.

Model XG1212AC-AS
Chat with Patrick

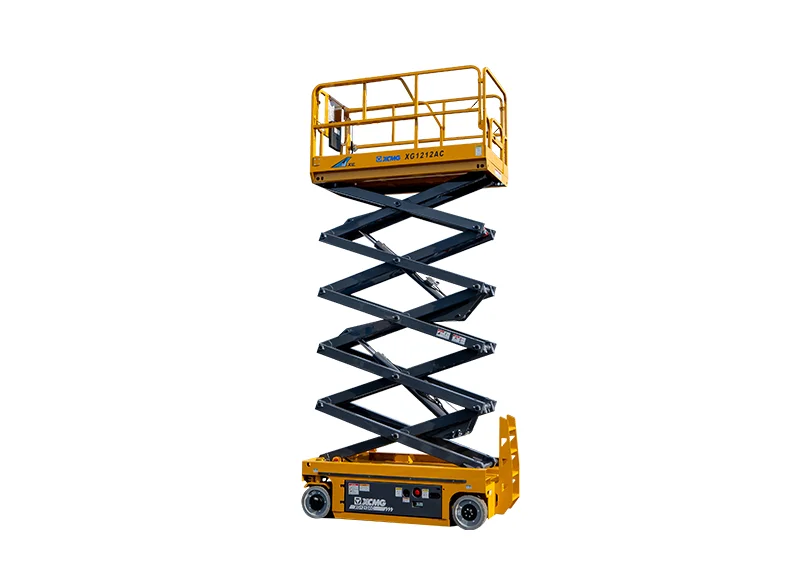

XCMG XG1212AC-AS Scissor Lift — 11.85 m working height, 320 kg capacity, AC drive self-propelled MEWP
XCMG XG1212AC-AS
CIF Quote Available
Key Parameters

Core Specifications

Max. Working Height
11.85 m
Max. Platform Height
9.85 m
Max. Lift Capacity
320 kg
Drive Type
AC Electric
Why This Machine

Product Features

Five aspects of the XG1212AC-AS that position it as the tallest XCMG metric scissor lift: peak envelope, AC drive, AS-series chassis, ground clearance, and parts compatibility.

01
Configuration

11.85 m working height with 9.85 m platform — tallest in metric range

11.85 m maximum working height and 9.85 m maximum platform height — the tallest in the XCMG standard metric scissor lift family. 320 kg rated lift capacity supports 2-person crew with substantial materials. Sized for high-bay warehouse, factory installation in halls with 10+ meter ceilings, and tall mezzanine work.

02
Powertrain

AC drive — continuous-duty for high-utilization fleets

AC drive electric motor supports continuous-duty operation needed in high-utilization rental fleets and large indoor work programs. Trade-off vs DC battery siblings is higher deadweight but longer continuous run cycles and full electric drive control.

03
Maneuverability

AS-series chassis with 1,877 mm wheelbase

AS-series chassis (1,877 mm wheelbase, 2.3 m outside turning radius) is shared with the 10-meter siblings XG1012AC-AS and XG1008AC-AS — common chassis components across the AS-suffix family lower inventory carrying cost for fleet operators running mixed-height AS rosters.

04
Mobility

100 mm ground clearance for outdoor jobsite conditions

100 mm minimum ground clearance — clears typical commercial floor irregularities, outdoor jobsite ground conditions, and ramp transitions. 25 percent grade ability supports outdoor slope movement. 4 km/h stowed driving speed, 0.8 km/h elevated for fine positioning at working height.

05
Parts Support

Positioning within the XCMG scissor lift fleet

Step down to the 10-meter siblings XG1012AC-AS (450 kg capacity) or XG1008AC-AS (230 kg, 420 kg lighter) when the project envelope is under 10 meters. Cross-over to the 7-meter siblings XG0807ACW-AS or DC variants for low-rise work. Genuine XCMG parts via me-equipment.com's authorized dealer channel.

Technical Parameters

Full Specification Sheet

ParameterUnitValue
Max. working height m 11.85
Max. platform height m 9.85
Max. driving speed km/h 4 (stowed) / 0.8 (raised)
Min. turning radius (outside) m 2.3
Min. ground clearance mm 100
Max. lift capacity kg 320
Max. grade ability % 25
Wheel base mm 1877
Total weight kg 3000
