10 m XCMG Scissor Lift — 450 kg Materials-Handling Capacity
10 m maximum working height self-propelled scissor lift. 8 m platform height, 450 kg lift capacity — the highest-capacity 10-meter unit in the XCMG range, nearly double the lighter sibling XG1008AC-AS (230 kg). AC drive electric. 2,680 kg total weight, 1,877 mm wheelbase shared across the AS series, 2.3 m outside turning radius. 4 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. 100 mm ground clearance. Suited for HVAC installation, mechanical contracting, electrical rough-in, factory installation, and materials handling at height.

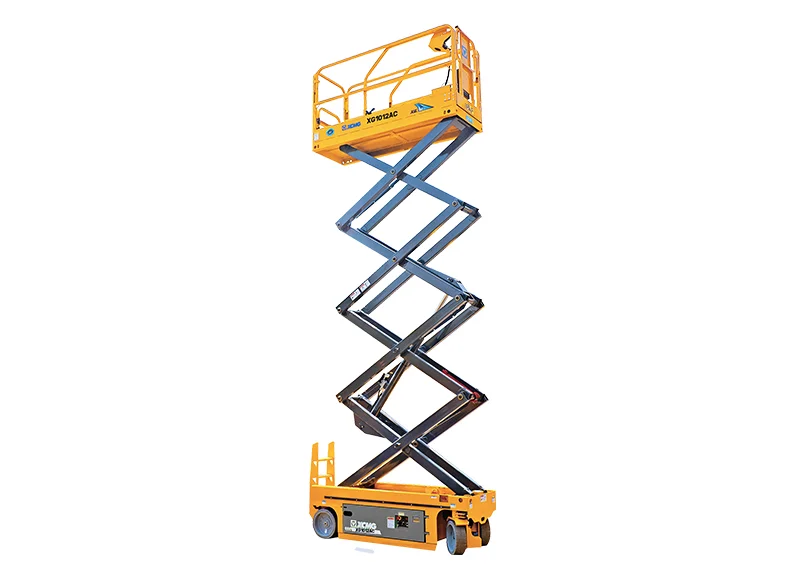

The XCMG XG1012AC-AS is a self-propelled scissor lift with 10 m maximum working height (8 m platform height) and 450 kg lift capacity — the highest-capacity 10-meter unit in the XCMG scissor lift lineup, sized for materials-handling work at platform height.
The XG1012AC-AS sits in the 10-meter AS series alongside the lighter-capacity sibling XG1008AC-AS (10 m / 230 kg / 2,260 kg). The 1012 variant nearly doubles the lift capacity at the same envelope (450 kg vs 230 kg) and runs 420 kg heavier (2,680 kg vs 2,260 kg) — the trade-off for getting more materials and crew up onto the platform. 4 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. 1,877 mm wheelbase shared with the rest of the AS series, 2.3 m outside turning radius. 100 mm minimum ground clearance — clears typical outdoor jobsite ground irregularities. Suited for HVAC installation, mechanical contracting, electrical rough-in, factory installation in tall halls, and rental fleet operators with customers who lift heavy materials to platform height.
Five aspects of the XG1012AC-AS that position it as the high-capacity 10-meter unit in the XCMG AS series: envelope, 450 kg capacity, AC drive, AS chassis, and sibling positioning vs XG1008AC-AS.
10 m maximum working height and 8 m maximum platform height — same envelope as the lighter sibling XG1008AC-AS but with substantially higher capacity. Sized for warehouse high-bay work, factory installation in halls with 8+ meter ceilings, and HVAC duct installation.
450 kg rated lift capacity — 96 percent higher than the same-envelope sibling XG1008AC-AS (230 kg). Supports 3-person crew with substantial materials, or 2-person crew with heavy mechanical components and tools. The capacity advantage drives 420 kg additional deadweight (2,680 kg vs 2,260 kg) for the reinforced platform and lift structure.
AC drive electric motor supports continuous-duty work with repeated lift cycles common in materials handling at height — moving HVAC components, electrical components, mechanical parts up onto the platform from ground delivery. Full electric drive control for fine positioning at height.
1,877 mm wheelbase and 2.3 m outside turning radius — shared chassis dimensions with the 10-meter sibling XG1008AC-AS and the 12-meter XG1212AC-AS. Common chassis components across the three AS-series siblings reduce inventory carrying cost for fleet operators standardizing on the AS platform.
Choose XG1012AC-AS when project work demands 450 kg capacity at 10 meters. Choose the lighter XG1008AC-AS when 230 kg is enough and the 420 kg weight saving matters for floor loads or transport. Step up to XG1212AC-AS for taller envelope. Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 10 |
| Max. platform height | m | 8 |
| Max. driving speed | km/h | 4 (stowed) / 0.8 (raised) |
| Min. turning radius (outside) | m | 2.3 |
| Min. ground clearance | mm | 100 |
| Max. lift capacity | kg | 450 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1877 |
| Total weight | kg | 2680 |
