7.8 m maximum working height self-propelled scissor lift. 5.8 m platform height, 230 kg lift capacity. AC drive electric — higher continuous duty cycles than the DC battery sibling XG0708DC. 4.5 km/h stowed driving speed, 0.8 km/h raised. 25 percent grade ability. 1,550 kg total weight, 1,360 mm wheelbase, 1.75 m outside turning radius. Suited for facility maintenance, factory installation, electrical contracting, and rental fleet work with mixed indoor/outdoor patterns.

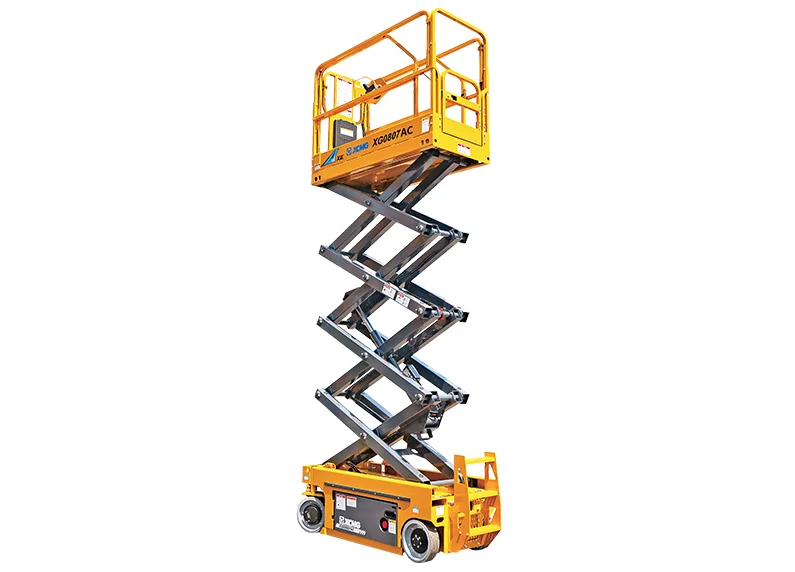

The XCMG XG0807AC is a self-propelled scissor lift with 7.8 m maximum working height (5.8 m platform height) and 230 kg lift capacity — sized for indoor and outdoor low-to-mid level work where AC drive electric motor running time matters more than battery-only operation.
The XG0807AC sits in XCMG's 7-meter scissor lift class with AC drive — paired against the DC battery sibling XG0708DC (7.7 m / 240 kg / 1,200 kg). The AC variant carries 350 kg more deadweight (1,550 kg vs 1,200 kg) but supports higher continuous duty cycles common in rental fleets and longer indoor shifts. 4.5 km/h stowed driving speed, 0.8 km/h raised — faster transit than the DC-platform siblings (4 km/h stowed). 25 percent grade ability. 1.75 m outside turning radius and 1,360 mm wheelbase keep it maneuverable in narrow aisles. 20 mm pothole protection clearance and 71 mm retracted ground clearance. Suited for facility maintenance, factory installation, electrical contracting, and rental fleet operators with mixed indoor/outdoor work patterns.
